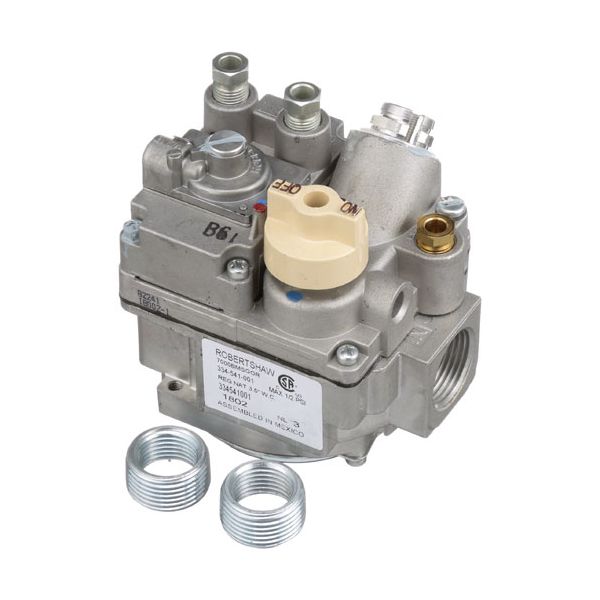

Vulcan Hart 00-412196-00G11 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot, 300,000 BTU
Special Price CAD$397.53 Regular Price CAD$659.41
Out of stock
SKU
00-412196-00G11
The Vulcan Hart 00-412196-00G11 Natural Gas Safety Bleed Gas Actuator with Pilot serves commercial kitchens including fryers to maintain safe gas flow operations. The safety bleed receives regulation from this part which also features built-in thermopile and magnet flame monitoring capabilities. The actuator features a 3/4" FPT connection and supports up to 300,000 BTU capacity to serve high-efficiency systems. The actuator operates with Vulcan Hart, Southbend and Wolf fryers to improve safety measures and reliability and energy efficiency and protect against gas hazards during smooth operation in demanding commercial kitchen settings.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
