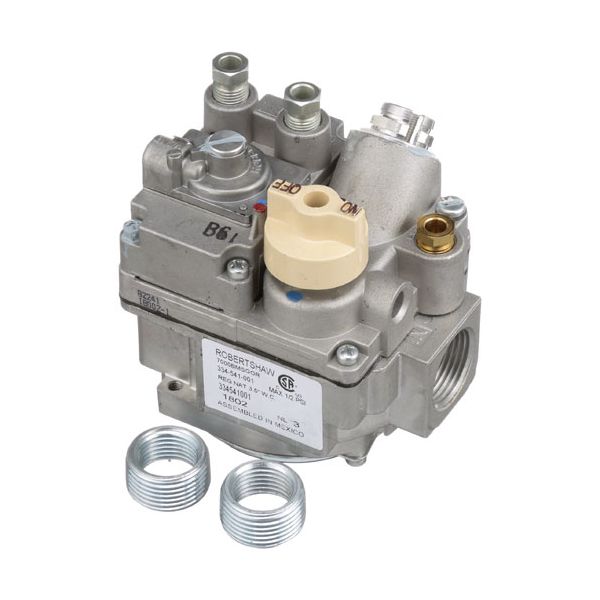

Vulcan Hart 00-412196-00G13 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot, 300,000 BTU
Special Price CAD$397.53 Regular Price CAD$659.41
Out of stock
SKU
00-412196-00G13
The Vulcan Hart 00-412196-00G13 Natural Gas Safety Bleed Gas Actuator with Pilot serves commercial kitchen fryers to manage gas flow. This part features a 3/4" FPT connection and operates using thermopile and magnet components to detect flames and ignite with its 300,000 BTU capacity. The Natural Gas Safety Bleed Gas Actuator with Pilot functions as a safety part for Vulcan Hart and Southbend and Wolf commercial fryers to improve both safety standards and energy efficiency during secure cooking operations.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
