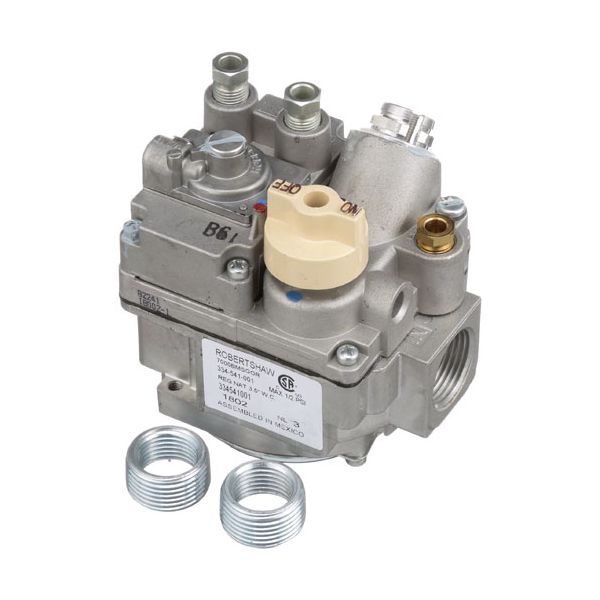

Vulcan Hart 00-412196-00G17 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot, 300,000 BTU
Special Price CAD$397.53 Regular Price CAD$659.41
Out of stock
SKU
00-412196-00G17
The Vulcan Hart 00-412196-00G17 Natural Gas Safety Bleed Gas Actuator with Pilot serves commercial fryers by maintaining safe gas flow operations. The safety actuator provides 3/4" FPT connection to handle 300,000 BTU and incorporates a thermopile and magnet system for flame detection and ignition security. The safety bleed control function of this actuator works with Vulcan Hart along with Southbend and Wolf commercial fryers. This part improves safety by stopping gas leaks while enhancing energy efficiency and providing trustworthy operation that is vital for high-quality kitchen equipment and risk reduction when working in demanding cooking areas.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
