Manitowoc 000002315 Fan Motor W/5/16" Shaft
Special Price CAD$573.24 Regular Price CAD$732.58
In stock
SKU
000002315
Manufacturer:

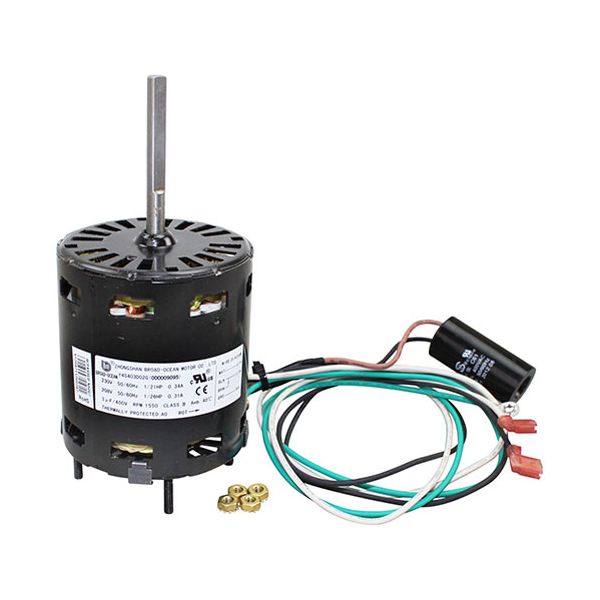

The Manitowoc 000002315 Fan Motor is a part component that is compatible with commercial ice machines of the same model to circulate air over internal heat exchange surfaces. It has a 5/16-inch output shaft so as to fit directly to the fan blade in order to enable airflow over the condenser or cabinet. This motor is installed in the ventilation system of the machine and is used to control operating temperatures during the ice production cycles, it is replaced when airflow is restricted or the motor is not working, and is therefore essential in keeping the performance of the machine and rejection of heat constant.
Dimensions
- Length: 7 In
- Width: 7 In
- Height: 5 In
- Weight: 4.38 lbs
Product Notes
- Fan Motor,
- 230-50/60Hz (1/21Hp, .34A), 208-50/60Hz (1/26Hp, .31A),
- Shaft = 5/16" X 2" W/ One Flat Side
- Manitowoc Bd0422A, Bd0423W, Bd0452A, Bd0453W, Bd0492N,
- Bd0602A, Bd0603W, Bd0692N, Br0420A, Br0421W, Br0450A,
- Br0451W, Br0490N, Br0600A, By0424A, By0425W, By0604A,
- Id0452A, Id0502A, Id0602A, Id0606A, Ir0520A, Iy-0524A,
- Iy-1004A, Iy0454A, Iy0504A, Iy0524A, Iy0604A, Iy0606A,
- Iyp0504A, Jd0422A, Jd0452A, Jd0602A, Jr0420A, Jr0450A,
- Jr0600A, Jy0424A, Jy0454A, Jy0604A, Qc0708A, Qd0422A,
- Qd0422Ap, Qd0452A, Qd0452Ap, Qd0602A, Qd0602Ap, Qf0806A,
- Qr0420A, Qr0420Ap, Qr0450Ap, Qr0600Ap, Qy0424A, Qy0424Ap,
- Qy0454A, Qy0454Ap, Qy0604Ap, Qy0605W, Rfc0985, Sd0422A,
- Sd0422Ap, Sd0452A, Sd0452Ap, Sd0502A, Sd0502Ap, Sd0602A,
- Sd0602Ap, Sf0906A, Sn0958A, Sr0420A, Sr0420Ap, Sr0421Wp,
