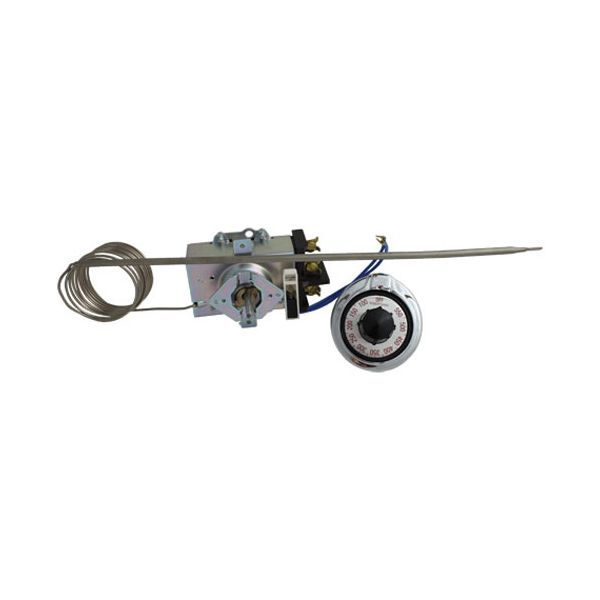

Garland 1010300 Oven Thermostat Assembly W/ 3/16" X 13" Blub, Pilot Ligh, Dial & Bezel D1/D18

Be the first to review this product
CAD$451.58
In stock
SKU
1010300
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
The Garland 1010300 Oven Thermostat Assembly is an essential part of the control system of the temperature. This assembly contains a 3/16”x 13” bulb, pilot light, dial, and bezel (D1/D18) to control the temperature accurately. It operates through a feature that detects the temperature inside the oven and switches the heat to get to a desired value to produce uniformity in preparing or baking food. Designed for restaurants, bakeries, and other food services, the thermostat increases energy effectiveness, improves food cookery homogeneity, and prolongs the life of the oven by avoiding overheating.

Dimensions

  • Length: 13.75 In
  • Width: 4.25 In
  • Height: 3.5 In
  • Weight: 1 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1010300-oven-thermostat-assembly-w-3-16-x-13-blub-pilot-ligh-dial-bezel-d1-d18-57667-2.jpg

Product Notes

  • [ Type - D1/D18 ] [ Temp 100-550 ] [ Bulb 3/16" X 13"
  • Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears]
  • [ Pilot Light, Dial & Bezel Included ]
  • [ Dial A250, K-163, # 22-1005 Off-550-100 ]
  • [ Bezel A557, K-160, # 26-4088 [ Light D173, # 38-1068
  • D1'D18 T'Stat, Dpst For Ac Operation, 4 Terminal
  • Used In Applications Requiring High Current.
  • Bakers Pride Oven Countertop Electric (Where Applicable)
  • Garland Oven Series: 36E Heavy Duty Ranges. Series: E2000.
  • Vulcan Broiler Series: Vb.
  • Grill Series: Ve.
  • Oven Series: Vr~
  • Models Vo004, Vo008 Non Pizza.
BAKERS PRIDE:
U-LINE:
5000-851, 5000-85A, D1-32-060-59
Reviews
Write Your Own Review
You're reviewing:Garland 1010300 Oven Thermostat Assembly W/ 3/16" X 13" Blub, Pilot Ligh, Dial & Bezel D1/D18
Your Rating
FAQS
Customer Questions
How do I install the Garland 1010300 Thermostat Assembly?

  • Disconnect power to the appliance.
  • Remove the old thermostat assembly from the unit, noting wiring positions.
  • Mount the Garland 1010300 Thermostat Assembly in the original location.
  • Reconnect wires to the corresponding terminals.
  • Secure the assembly and restore power.
  • Test temperature control to confirm proper operation.

What are the operating limitations for the Garland 1010300 Thermostat Assembly?

This thermostat typically operates within 0–500°F, handling standard voltage ranges for commercial ovens 120–240VAC. Exceeding these ranges can damage the sensor or contacts.
