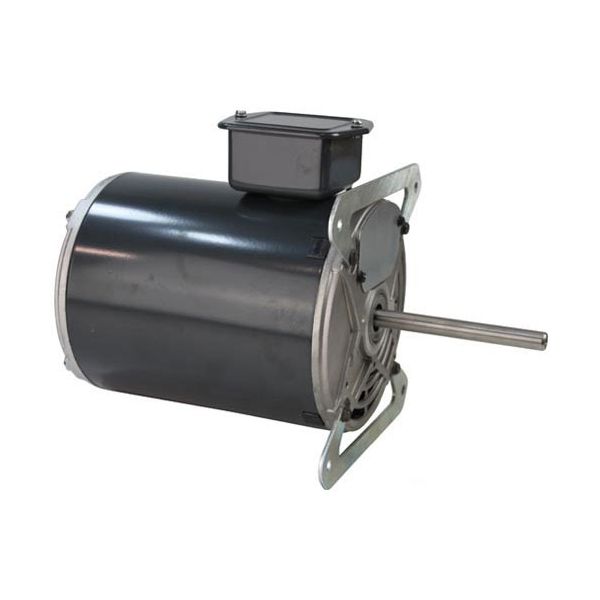

Southbend 1175567 Oven Blower Motor W/ 2 Flats 7.2/4.5AMP 1PH CW

Special Price CAD$1,003.83 Regular Price CAD$1,099.59

In stock

SKU

1175567

The Southbend 1175567 Oven Blower Motor is the part necessary to improve the circulation of air across cavities and provide consistent heat. This runs at 115V with dual speed capability to efficiently transform electrical to mechanical energy to turn the fan to blow hot air across the component. Some advantages that can be associated with this part include better cooking uniformity, shorter cooking cycles, as well as energy conservation, which is essential for keeping up high levels of productivity within a rather chaotic environment of a working kitchen.

Categories: Electrical & Hardware, Motors & Pumps,

Manufacturer:

Southbend

Dimensions

Length: 10.4 In
Width: 8.15 In
Height: 7 In
Weight: 23 lbs

Product Notes

[ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
[7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
Frame 56Z, 2 Speed.
[ 1/2" X 4-1/2" Shaft W/ 2 Flats]
White Common
Black Power To Fan Switch - Hi
Red Power To Fan Switch - Lo
Blue/Purple Or Brown/Brown To Centrifugal Switch.
If Oven Does Not Have Centrifugal Switch Then
Wire Together W/ Wire Nut.
If Only Using For One Speed, Then Wire Nut Red Wire.
Southbend
Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Replaces Parts

SOUTHBEND:

1175567, 1175571, 1177452, 1188523, 1194780 OS MAKE LIST, 4440300, 4440367, SOU1175567, SOU1175571, SOU1177452, SOU1188523, SOU4440367

Reviews

Write Your Own Review

FAQS

Customer Questions

What Maintenance is required for the Southbend 1175567 Motor?

The Motor should be checked monthly for clean airflow around the motor housing, secure mounting bolts, and tight wiring connections. Remove any accumulation of grease or debris to prevent overheating.

How do I install the Southbend 1175567 Motor?

Disconnect power to the oven and follow lock-out/tag-out procedures.
Remove the blower housing cover and disconnect all motor wiring, noting color codes.
Remove the old motor from the mounting bracket, including the blower wheel if needed.
Install the new Motor in the same bracket, line up the

What are common issues with the Southbend 1175567 Motor?

Common issues include the blower wheel failing to spin due to incorrect wiring, motor overheating from restricted airflow or grease buildup, and improper shaft seating causing vibration or noise.

What are the operating limitations for the Southbend 1175567 Motor?

The Motor is rated for 115V, single-phase, 0.5/0.25 HP, 7.2/4.5 amps, two-speed 1725/1140 RPM, frame 56Z, shaft size
