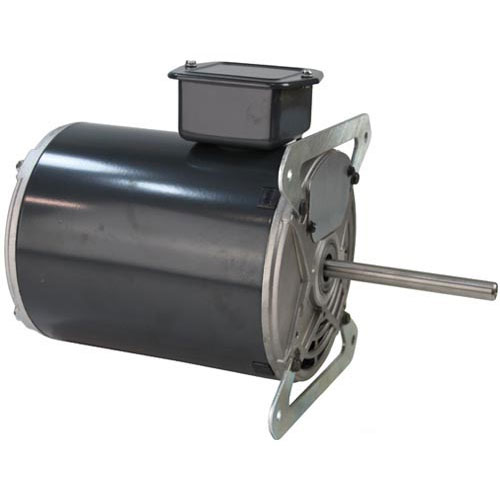

Southbend 1175567 Oven Blower Motor W/ 2 Flats 7.2/4.5AMP 1PH CW

SKU: 1175567 2-1175567 Brand:
Southbend
Availability:
In Stock
(0)
C$960.68 Price reduced from C$1,107.71
Save C$147.03
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1175567 Oven Blower Motor is the part necessary to improve the circulation of air across cavities and provide consistent heat. This runs at 115V with dual speed capability to efficiently transform electrical to mechanical energy to turn the fan to blow hot air across the component. Some advantages that can be associated with this part include better cooking uniformity, shorter cooking cycles, as well as energy conservation, which is essential for keeping up high levels of productivity within a rather chaotic environment of a working kitchen.

Dimensions:

  • Weight: 23 lbs
  • Length: 10.4 in
  • Height: 7 in
  • Width: 8.15 in

SOUTHBEND:

1175571 1177452 1188523 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367

  • What Maintenance is required for the Southbend 1175567 Motor?

    The Motor should be checked monthly for clean airflow around the motor housing, secure mounting bolts, and tight wiring connections. Remove any accumulation of grease or debris to prevent overheating.

  • How do I install the Southbend 1175567 Motor?

    • Disconnect power to the oven and follow lock-out/tag-out procedures.
    • Remove the blower housing cover and disconnect all motor wiring, noting color codes.
    • Remove the old motor from the mounting bracket, including the blower wheel if needed.
    • Install the new Motor in the same bracket, line up the ½″ Ø × 4½″ shaft with two flats.
    • Re-connect wiring exactly: White=common, Black=high speed, Red=low speed, and Blue/Purple (or Brown/Brown) to centrifugal switch if equipped.
    • Replace housing cover, restore power, and run the blower to verify correct rotation (CW from rear) and smooth operation.

  • What are common issues with the Southbend 1175567 Motor?

    Common issues include the blower wheel failing to spin due to incorrect wiring, motor overheating from restricted airflow or grease buildup, and improper shaft seating causing vibration or noise.

  • What are the operating limitations for the Southbend 1175567 Motor?

    The Motor is rated for 115V, single-phase, 0.5/0.25 HP, 7.2/4.5 amps, two-speed 1725/1140 RPM, frame 56Z, shaft size ½″ × 4½″ with two flats.
