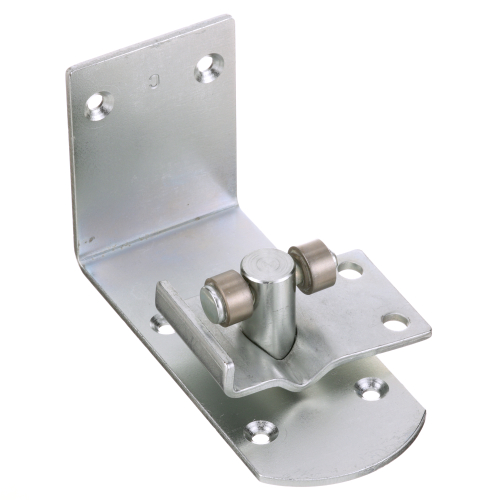

Eliason 140-88Z-2 Hinge Assembly Upper W/90° Bearing Plate

SKU: 140-88Z-2 2-140-88Z-2 Brand:
Eliason
Availability:
In Stock
(0)
C$193.21
Have a Question? +1 (866) 863-0907

Specifications:

  • Upper Hinge Assembly With 90° Bearing Plate Used On Eliason®
  • Double-Action Swing Doors
  • Height: 4", 102 Mm
  • Includes: (2)Rollers,(1)Flat Head Axle,(1)"E"Clip,
  • Note: Used On Eliason Double-Action Swing-Doors
  • (2)Bolts,(2)Nuts,(10)Machine Screws,
  • (6)1-1/2"Wood Screws,(4)2-1/2"Wood Screws
  • Length: 6-3/4", 171 Mm
  • Note: Used On Eliason Double-Action Swing-Doors
  • Weight: 2.818 Lb
  • Width: 3", 76 Mm

Description

The Eliason 140-88Z-2 Hinge Assembly is an upper door-hinge component designed to support and direct the movement of compatible commercial doors. The assembly includes a 90° bearing plate that provides the mounting and bearing interface for the hinge mechanism at the upper door position. It connects the door to the surrounding frame and establishes the pivot point used during opening and closing. The bearing plate works with the hinge hardware to support the door while allowing controlled movement through its operating range. Installed at the upper mounting location, the assembly works with the lower hinge and door hardware to maintain the door's alignment during use.

Dimensions:

  • Weight: 2.82 lbs
  • Length: 6 in
  • Height: 3 in
  • Width: 4 in

ELIASON:

140-88Z2 K0195
