Franklin Chef 147912 Thermostat 3/16" X 11-5/8" 48" CAP 250-550° Pitch BJWA
Special Price CAD$298.76 Regular Price CAD$402.38
In stock
SKU
147912
Manufacturer:

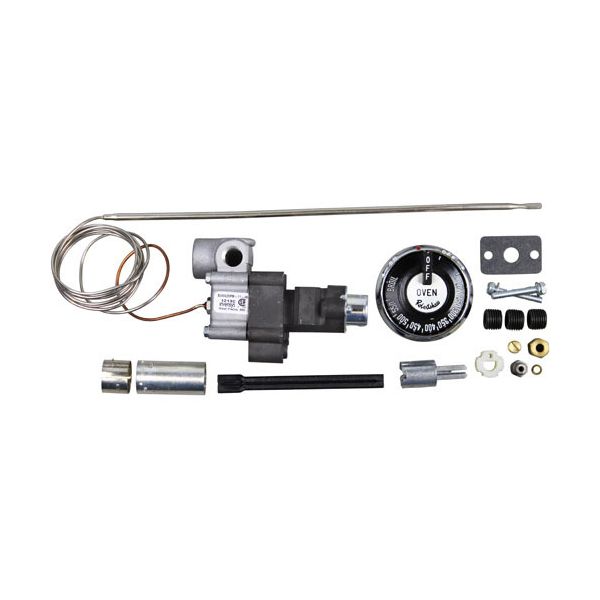

The Franklin Chef 147912 Thermostat BJWA 3/16" X 11-5/8" with 48" long capillary tube is a temperature control part installed in cooking systems. It senses the internal temperature of an oven or chamber through the sensing bulb attached to a capillary tube and controls the amount of heat it produces by turning a heating element on or off or by opening or closing a gas valve. It is usually fitted in domestic and light commercial ovens, ranges, and similar kitchen appliances that need to be set to a precise temperature.
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
