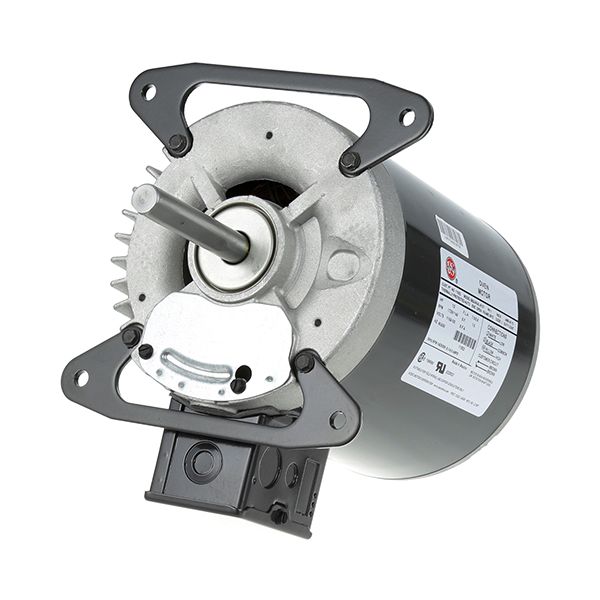

Duke 153565SED 1/2-1/4HP 2-Speed Oven Motor 115V 1725/1140 RPM

Be the first to review this product

Special Price CAD$738.99 Regular Price CAD$1,317.76

In stock

SKU

153565SED

Categories: Electrical & Hardware, Motors & Pumps,

Manufacturer:

Duke

Duke 153565SED 1/2-1/4HP 2-Speed Motor with 115V used for oven and is multifunctional in its usage. It has two speeds 1725/1140 RPM with 1/2 and 1/4 horsepower to ensure it performs the required tasks of an oven efficiently. The motor is right-hand rotation, has 5/8” x 3-1/2” shaft with 2 flats, and is suitable for 9-7/8” and 10” blower wheels. It operates at 50/60Hz to provide quality electrical power and low energy consumption due to efficient motor used. Specially suitable for oven series.

Dimensions

Length: 16 In
Width: 10 In
Height: 8 In
Weight: 6.258 lbs

Product Notes

[ 120V, ] [ 1/2, 1/4 Hp, ] [1P ] [1725/1140 RPM ]
[ 50/60Hz ] [8.1-5.0 A ] [ Cw Rotation ] 2 Speed.
[ 5/8 X 3-1/2 Shaft W/ 2 Flats ]
Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
# 26-4052
Duke
Oven Series: E

Replaces Parts

DUKE:

153034, 153035, 153565, 153565SED, 155827, DUK153034, DUK155827

Reviews

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Duke 153565SED Motor?

Clean the motor housing and blower wheel regularly to remove grease buildup. Inspect the wiring and bearings for wear—replace if there’s excess vibration or current draw.

How do I install the Duke 153565SED Motor?

Disconnect power from the oven and let it cool.
Remove the access panel and unbolt the old motor.
Disconnect all wiring, given which wires go where (especially the 2-speed leads).
Mount the new 153565SED motor (5/8″ × 3‑1/2″ shaft with 2 flats), then reconnect the wiring exactly.
Replace the panel, restore power, and test for correct speed operation (1725 / 1140 RPM).

What are common issues with the Duke 153565SED Motor?

Common problems include failing bearings (causing noise), incorrect speed wiring, and overheating if run at the wrong voltage or under heavy load.
