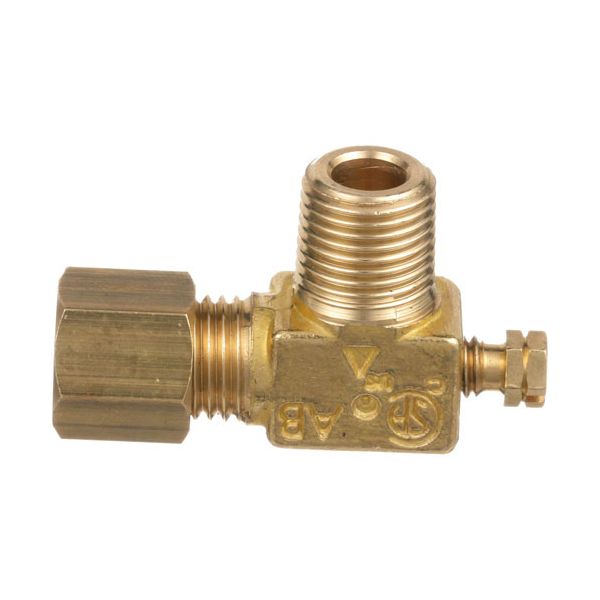

Imperial 1609 Pilot ADJ Valve W/1/8 MPT X 3/16 CC, 90 DEG, Adjustable
Specifications:
- Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] Angle - 90 Deg, Adjustable
- Csa Approved In Canada And U.S.
- Royal Range
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 1.5 in
- Height: 0.38 in
- Width: 0.75 in
This Part Fits the Following Models
100 modelsThis valve is designed to adjust and fine-tune the output of a gas pilot flame in commercial cooking equipment to provide stable ignition performance and is compact enough to fit in small spaces. It works by controlling the flow of gas through a 1/8" MPT inlet to precisely adjust the pilot system and ensure proper flame strength in fryer, range, and broiler applications. Made with a 90-degree body angle, the valve allows easier installation in compact equipment compartments while supporting consistent pilot operation. It is widely used in commercial gas cooking systems that require reliable ignition to help ensure safe burner startup. If the adjustment valve becomes worn or clogged, it can cause an unstable flame or delayed response to gas adjustments, which may affect equipment performance during normal kitchen operation. Replacing the adjustment valve can help restore proper flame control and support stable ignition response.
Equipment Compatibility:
Primary applications for Imperial Pilot Adjustment Valves include commercial gas fryers, ranges, broilers, griddles, and cooking systems used in restaurant kitchens and foodservice operations. This Pilot Adjustment Valve 1609 is compatible with commercial kitchen equipment from leading brands such as Vulcan Hart, American Range, Garland, Imperial, Montague, Frymaster, Southbend, and Royal Range, and more, where pilot flame adjustment control is required for reliable ignition performance.
Brand Compatibility:
Replaces multiple part numbers across various commercial cooking equipment brands, including American Range, APW Wyott, Atosa, Bakers Pride, Comstock Castle, Dynamic Cooking Systems, Garland, Hobart, Imperial, Magikitch’N, Montague, Randell, Rankin Delux, Royal Range, Southbend, Tri-Star, and Vulcan Hart. Refer to the “Replaces Parts” section for complete cross-reference details.
Product Specifications:
Manufacturer: Imperial
SKU: 1609
Product Type: Pilot Adjustment Valve
Connection Type: 1/8" MPT x 3/16" Compression
Angle: 90°
Function: Adjustable Pilot Gas Control
Approval: CSA Certified (US & Canada)
Key Features:
Adjustable pilot flow control helps maintain stable ignition performance in gas equipment. 90-degree angled design allows easier installation in compact burner compartments. 1/8" MPT and 3/16" CC fittings provide secure gas connection compatibility. Supports consistent pilot flame regulation for reliable burner startup. Suitable for routine replacement in commercial kitchen gas systems.
Operational Feedback:
“After installing the new pilot adjustment valve, the ignition became more stable, and the pilot flame stayed consistent during regular operation.”
APW WYOTT:
ATOSA:
COMSTOCK CASTLE:
DYNAMIC COOKING SYSTEMS:
13029-1 DCS13029-1
IMPERIAL:
1604 IMP1609
MAGIKITCH'N:
23A 2802-0031400 280200314 MK23A MK2802-0031400 MK280200314 MKRP0129 RP0129
RANDELL:
DRB-12A GT-10A RB-12A RDCM-04A RDGM-14A RDHP-16 RDHP-E-C-16 RDLR-08 RDLR-8 RDOR-09 SSPR-11A TB-12A TB-3-12A TB3-12A
RANKIN DELUX:
DRB-12A GT-10A RANRB12A RB-12A RB12A RDCM-04A RDGM-14A RDHP-16 RDHP-E-C-16 RDLR-08 RDLR-8 RDOR-09 SSPR-11A TB-12A TB-3-12A TB3-12A
ROYAL RANGE:
0531-AP7-1 1625 531AP7-1 ROY0531-AP7-1 ROY531AP7-1
SOUTHBEND:
TRI-STAR:
311027 AS-311027 TRS311027
VULCAN HART:
00-404193-00002 00-719193 104193-2 15086 19193 404193-00002 404193-2 719193 VH104193-2 VH404193-2
