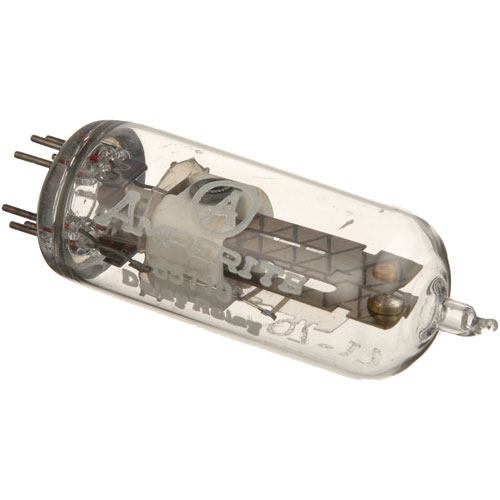

Blodgett 16529 Oven Thermal Delay Relay 3A 115V

SKU: 16529 2-16529 Brand:
Blodgett
Availability:
Out of Stock
(0)
C$680.11 Price reduced from C$1,224.75
Save C$544.64
Have a Question? +1 (866) 863-0907

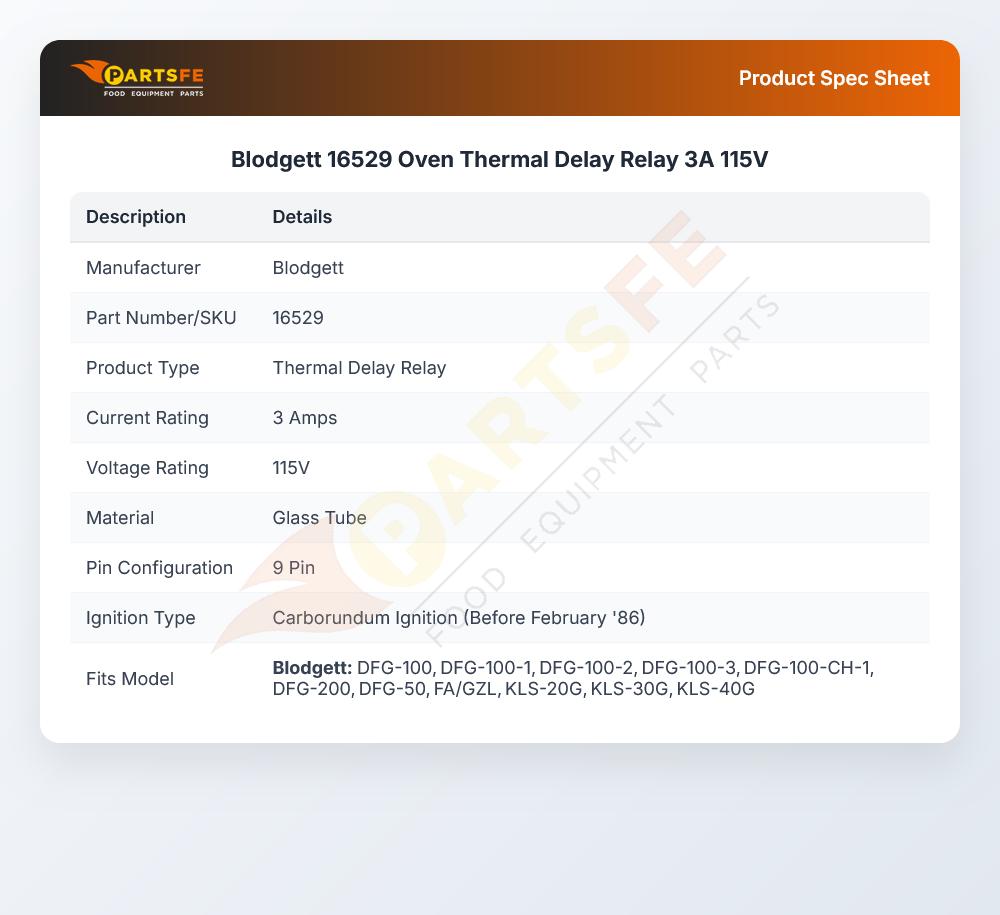

Specifications:

  • Thermal Delay Relay
  • [3 Amps] [115V ] [Amprite ] Glass Tube Thermal Time Delay
  • Relay 9 Pin
  • For Bracket & Base Use # 38-1258
  • Blodgett Model Dfg W/ Carborundum Ignition Before Feb '86
  • Oven Series: Dfg 50 (Before 4/1/86), Dfg 100, 200 & 300
  • (Before 2-1-86)~
  • Fa/Gzl.
  • Market Forge Oven 2500Hec, 2592Hec, 2700Hec, 2792Hec.
  • Steamer Where Applicable.
  • Wolf Oven Afs, Caf, H, Kafs, Kcaf, Kh.

Description

The Blodgett 16529 Thermal Delay Relay is an essential part of a system that improves the performance and reliability of commercial ovens, including Market Forge models. This thermal time delay relay operates at 3 amps and 115 volts, delaying the activation of the heating element during start up, so that the oven maintains optimal temperature control. With this feature, we prevent our circuits from overheating, allowing more consistent cooking results and energy efficiency. The relay has 9 pin configuration and is recommended for certain Market Forge ovens and Blodgett DFG series.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3 in
  • Height: 1.25 in
  • Width: 1.5 in

BLODGETT:

11512 BL11512 BL16529

HOBART:

00-718604 18604 718604

MARKET FORGE:

10-8262 S10-8262

VULCAN HART:

00-718604 18604 718604

  • What maintenance is required for the Blodgett 16529 Thermal Delay Relay?

    The Blodgett 16529 Thermal Delay Relay should be checked regularly for heat damage, loose terminals, or delayed activation. Keeping the control compartment clean helps prevent overheating and ensures consistent relay timing.

  • How do I install the Blodgett 16529 Thermal Delay Relay?

    • Disconnect power from the Blodgett oven.
    • Open the control panel and locate the existing thermal delay relay.
    • Label or record all wire positions for accurate reinstallation.
    • Reconnect the wires to their corresponding terminals.
    • Restore power and verify proper delay timing during system startup.

  • What are common issues with the Blodgett 16529 Thermal Delay Relay?

    Common issues include delayed or failed switching, sticking contacts, heat-related internal wear, and intermittent operation that affects ignition or fan sequencing.

  • What are the operating limitations of the Blodgett 16529 Thermal Delay Relay?

    Thermal delay relays in Blodgett ovens typically operate on 120–240V circuits and manage short delay intervals to coordinate ignition or fan startup. These relays are built to withstand high-heat control environments.
