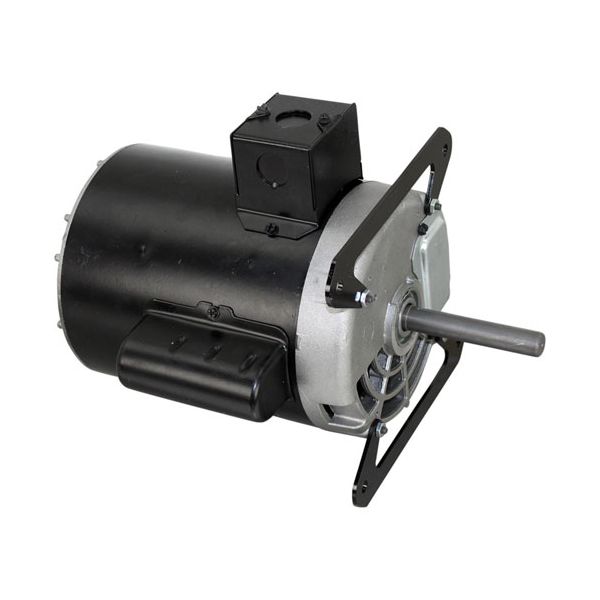

Garland GL1686711 0.75/0.21HP 2-Speed Blower Motor 1725/1140 RPM 115V/1PH
Special Price CAD$413.38 Regular Price CAD$683.11
In stock
SKU
1686711
The Garland GL1686711 Oven 2-Speed Blower Motor is a high-performance motor intended for use in kitchen equipment. This motor runs at two speeds; 1725 and 1140 RPM to ensure the fan is always at the right speed to provide the right airflow for even cooking. It has a power rating of 0.75 HP and a voltage of 115V and it guarantees efficiency when operating even with minimal power it is designed to be very strong and long-lasting in such conditions and is an important part of equipment for commercial use.
Manufacturer:
Dimensions
- Length: 15.25 In
- Width: 10.5 In
- Height: 10.5 In
- Weight: 25 lbs
Product Notes
- Blower Motor, 2 Speed.
- [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
- [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
- [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
- Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
- 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
- Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
- Spaced On 4" Centers Bracket To Bracket And On Each Bracket
- They Are Spaced 4.097"
- Garland Blower Wheel # 26-1464
- Us Range Blower Wheel # 26-1464
- Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
- Tim Ortons Spritzer,
- Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
- Sumg-100
