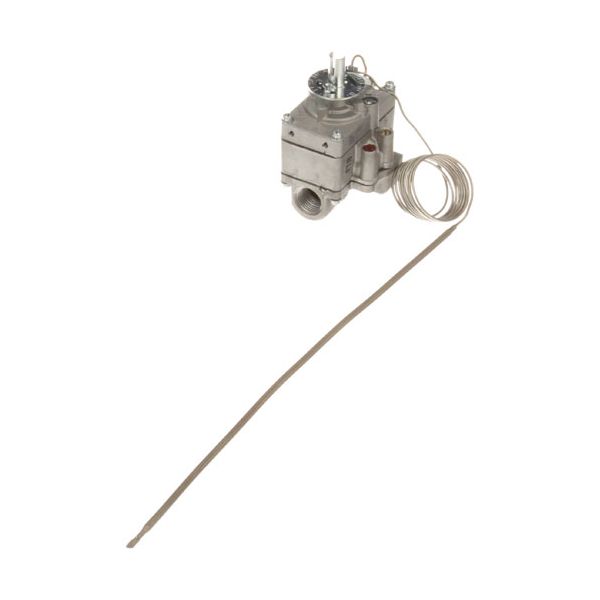

Comstock Castle 17030 Thermostat Temperature 300°F-650°F 3/16 X 14-3/4 48" FDTH-1
Special Price CAD$377.01 Regular Price CAD$825.97
In stock
SKU
17030
Manufacturer:
The Comstock Castle 17030 Thermostat is a temperature controller that measures the heat variations and turns on the heating or cooling system that is connected to it. Its internal control reacts to the changes in the 300-659F range, keeping setpoints by mechanical changes. The thermostat is installed with its 3/16 inch mounting stem and 48-inch capillary tube, which enables it to access the desired temperature range and is designed to be installed in commercial ovens or industrial equipment. This arrangement offers the fact that the sensor and control parts are correctly positioned to monitor temperature and operate in the equipment.
Dimensions
- Length: 14.75 In
- Width: 1.75 In
- Height: 4.5 In
- Weight: 1.3 lbs
Product Notes
- [ Fdth-1 ] [ Temp 300-650 ] [ Bulb 3/16" X 14-3/4"
- Nickel ] [ Cap 48 ] [ Gas 1/2 Fpt In/Out,
- Gas In: (Side) F ] Gas Out: (Side) E
- [ Dial # 22-1011 (300-650) Black & Silver
- T'Stat Knob For Fd T'Stat, 4-Way Mount ]
- [Bakers Pride Dial # 22-1202 (300-650) Black
- Printed Dial For Fd T'Stat, Flat Down ]
- Note: The Bypass Screw Is Backed All The Way Out Allowing
- Gas To Flow In The Off Position. It Should Be Turned In And
- Then Adjusted For The Proper Bypass Flame.
