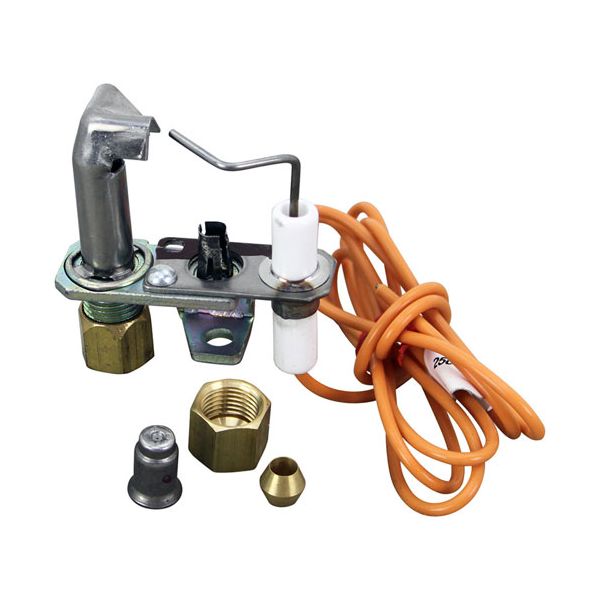

Garland 1758901 Oven Pilot Assembly W/ Igniter & Orifice 24" Wire
Special Price CAD$105.14 Regular Price CAD$120.70
In stock
SKU
1758901
The Garland 1758901 Oven Pilot Assembly with Igniter and Orifice is an essential part which is used to ignite the gas supplied to the main burner. This assembly uses a thermocouple that produces electric current from the heat of the pilot flame to maintain a steady supply of ignition while at the same time eliminating the possibility of gas escape. Some of the benefits include flame shut-off which helps in increasing safety if flame is extinguished, reliable performance that it provides consistent temperatures for cooking and easy installation with a 24” wire for multi usages.
Manufacturer:
Dimensions
- Length: 3.5 In
- Width: 0.875 In
- Height: 0.5 In
- Weight: 0.3 lbs
Product Notes
- Nat/Lp Pilot, Factory # 5Sl2Er, 1830-734,
- Tube Size 3/16",
- Flame Pattern Right, Igniter W/ 24" Wire
- Lp Orifice # 26-1554
- Nat Orifice # 26-1554
- You Will Need Round Post Ignition Terminal # 85-1063
- If Used For Blue Johnson Control Module G67Ag-3 # 44-1267.
- Garland Oven Model Eco, Ico, Tg
- Us Range Series Cg, Performer Ii, (Left Side Of Standard
- Oven), Performer Ii Convection Oven.
