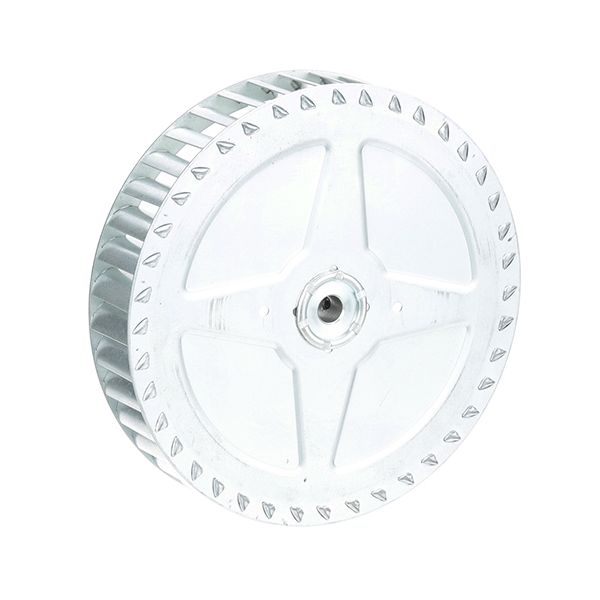

Jade Range 300188000 Range Blower Wheel 8-1/16" DIA X 1-5/8" W
Special Price CAD$316.00 Regular Price CAD$520.20
In stock
SKU
300188000
Manufacturer:
The Jade Range 300188000 Range Blower Wheel 8-1/16" DIA X 1-5/8" W is a fan wheel that mounts to the blower motor shaft to move air through compatible kitchen equipment. It rotates within the blower assembly to circulate the air through the heating and ventilation section during equipment operation. The included puller hub and single set screw secure the wheel to the motor shaft allowing consistent rotation with the blower motor. It is installed in commercial cooking equipment where controlled airflow supports heat distribution and ventilation within the component.
Dimensions
- Length: 8.063 In
- Width: 8.063 In
- Height: 1.625 In
- Weight: 1.44 lbs
Product Notes
- Blower Wheel,
- 8-1/16" Dia ] X 1-5/8"W X 1/2" Hole, Flat Back,
- Ccw Rotation, Puller Hub, No Keyway, 1 Set Screw,
- Jade Motor # 68-1192
- Used In Jade Motor/Wheel Asbly, # 68-1079
- Used With Wolf Motor # 68-1275
- Jade Oven Jsr, Jtrh, Jslb
- For Jsr-22C Use Nlower Wheel # 26-4016 Now "Nla"
- Oven Jsr-22C Replace Old 7-1/2" X 1-5/8" With This Wheel.
- Wolf Oven Kch, Kchss/Xch & R With 18" Wide Oven.
