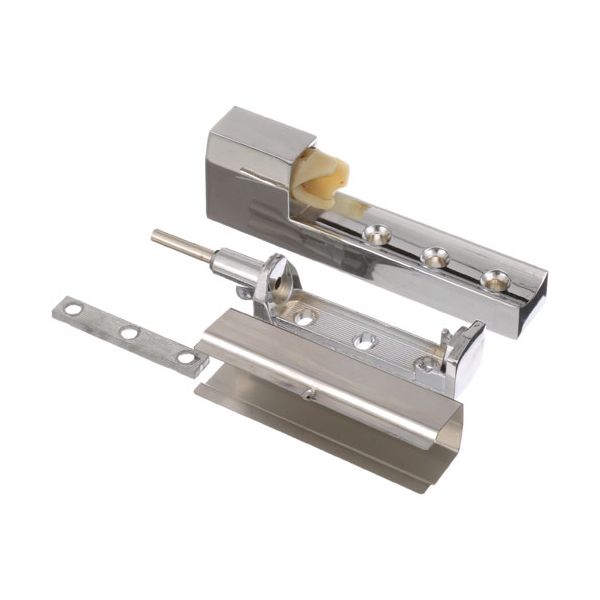

Delfield 3234617KT-S Refrigerator Edgemount Cam Lift Hinge
CAD$30.86
In stock
SKU
3234617KT-S
Manufacturer:
The Delfield 3234617KT-S Refrigerator Edgemount Cam Lift Hinge is a commercial unit designed to give the door movement and accurate positioning. Its design enables doors to open and close without straining other components around the hinge. It is installed at the edge mount of the appliance door to make sure that it is properly aligned and that it closes securely to allow the usage of the appliance. This is a necessary component of the refrigeration system that ensures the stability of performance in high-volume zones like restaurants.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 1 In
- Weight: 0.92 lbs
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
