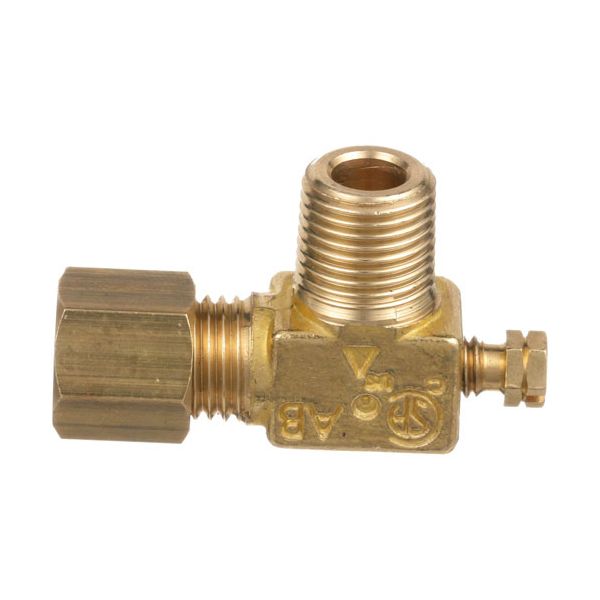

Montague 35 Pilot Valve Adjustable W/1/8 MPT X 3/16 CC 90 DEG
CAD$18.86
In stock
SKU
35
Manufacturer:
The Montague 35 Adjustable Pilot Valve is a flow control part that is applied to control the supply of gas at the pilot level in a control system. It operates using an internal adjustment mechanism to enable flow volume to be controlled accurately to provide stable and constant operation. This valve is installed in threaded connections with an inlet of 1/8-inch MPT and a compression outlet of 3/16-inch and a 90-degree design that allows directional routing. In commercial service conditions, it facilitates proper installation, proper performance, and proper control in installation, adjustment, and maintenance of the services.
Dimensions
- Length: 1.5 In
- Width: 0.75 In
- Height: 0.375 In
- Weight: 0.1 lbs
Product Notes
- Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] Angle - 90 Deg, Adjustable
- Csa Approved In Canada And U.S.
- Royal Range
