Genuine OEM Part
main product photo

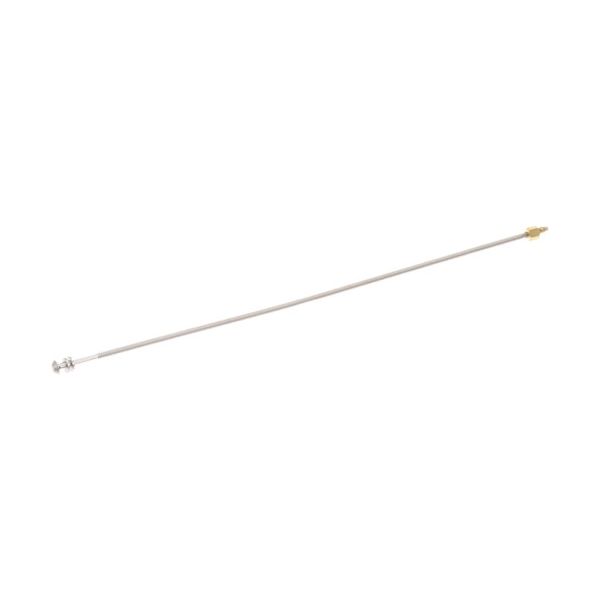

Imperial 35714 Pilot Tube Assembly Flexible Corrugated Stainless Steel 3/16" X 18"

Be the first to review this product
Special Price CAD$26.83 Regular Price CAD$33.81
In stock
SKU
35714
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Imperial 35714 Pilot Tube Assembly is a flexible gas line product that is used to feed a pilot burner with fuel. With a diameter of 3/16" and a length of 18", it has a corrugated stainless steel structure, which enables it to be flexible in an controlled installation manner. The tube is usually applied in the process of repair or replacement of the equipment to resume the proper pilot gas flow. In the gas delivery system, it is significant as it assist in keeping the pilot running steady, in assisting steady ignition and performance in commercial cooking.

Dimensions

  • Length: 18 In
  • Width: 0.25 In
  • Height: 0.25 In
  • Weight: 0.05 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-35714-flexible-corrugated-stainless-steel-pilot-tube-assembly-3-16-x-18-30965-2.jpg

Product Notes

  • Flexible Pilot Tube Assembly
  • Corrugated Stainless Steel
  • 3/16" X 18"
  • With Nut, Ferrule And Pilot Head
  • Imperial Oven/Broiler Ihr Diamond,
  • Griddle Ity-36, Ity-48, Ity-60
  • Fryer
More Information
Disable SaleableNo
Replaces Parts
DORMONT:
DORT3-BZ002-18, DORT3BZ002-18, T3-BZ002-18, T3BZ002-18
IMPERIAL:
10000-14, 35714, IMP10000-14, IMP35714
Reviews
Write Your Own Review
You're reviewing:Imperial 35714 Pilot Tube Assembly Flexible Corrugated Stainless Steel 3/16" X 18"
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the appliance gas supply and disconnect power source.

Step2: Open burner compartment to access pilot line.

Step3: Remove the old pilot tube and detach fittings carefully.

Step4: Install a new pilot tube assembly, aligning both ends properly.

Step5: Tighten all connections securely to prevent leaks and close the burner compartment.

Step6: Restore gas, check fittings, and test pilot flame operation.
