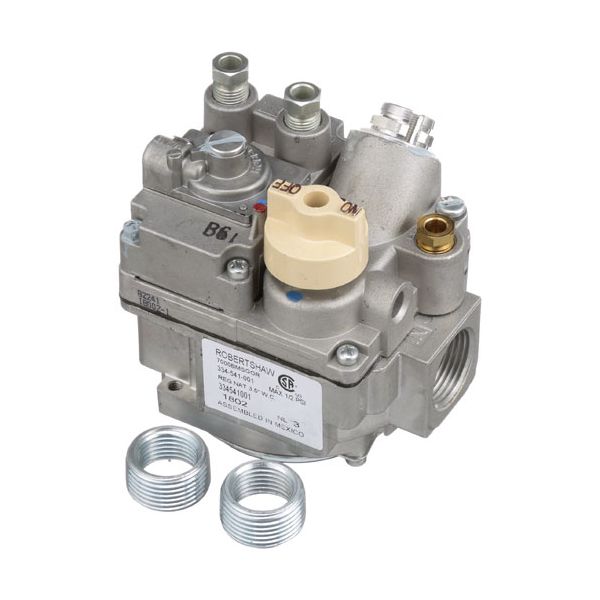

Vulcan Hart 412196-G11 3/4" FPT Natural Gas Safety Bleed Gas Actuator W/ Pilot 300,000 BTU
Special Price CAD$397.53 Regular Price CAD$659.41
Out of stock
SKU
412196-G11
The Vulcan Hart 412196-G11 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot serves commercial kitchen equipment to manage gas flow through safe mechanisms. The 300,000 BTU capacity of this part helps eliminate gas accumulation to prevent leaks and maintain efficient operation. This Has 3/4" FPT connection simplifies system integration and the built-in safety bleed function adds operational security to the part. This appliance functions in high-temperature cooking appliances to deliver better operational reliability and enhanced safety standard compliance.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
