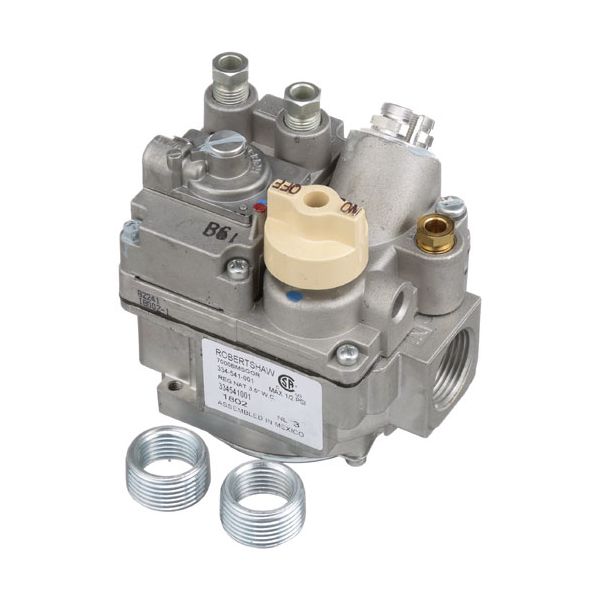

Vulcan Hart 412196-G17 3/4" FPT Natural Gas Safety Bleed Gas Actuator W/ Pilot 300,000 BTU
Special Price CAD$397.53 Regular Price CAD$659.41
Out of stock
SKU
412196-G17
The Vulcan Hart 412196-G17 3/4" FPT Natural Gas Safety Bleed Gas Actuator with Pilot 300,000 BTU functions to control gas flow in commercial kitchens. The safety actuator provides accurate gas control which limits leakage dangers but preserves burner efficiency. The 3/4" FPT connection provides users with simple installation and system compatibility. The integrated pilot system improves ignition stability therefore making operations more efficient. The component features durability combined with high heat resistance making it suitable for demanding cooking applications that deliver safe and steady gas flow.
Manufacturer:
Dimensions
- Length: 4.5 In
- Width: 2.5 In
- Height: 2.5 In
- Weight: 2.1 lbs
Product Notes
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermopile Magnet
- 3/4" X 1/2" Reducer Bushings, Model 7000 Bmsgor
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- **Use # 51-1470 To Convert To Lp Gas.**
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 3/8-32
- Brass Pile Holding Nut, 3/8-38 Thread For Magnet, 750Mv,
- 500Mv Under Load.
- Southbend Fryer Series: 14,18.
- Vulcan Hart Fryer 7891G, 7892G, Hf91G, Hf92G.
- Wolf Fryer Ss-Wtf-42, Wtf-42.
