Vulcan Hart 412788-60 Coaxial Thermocouple 72" 20-30mV

SKU: 412788-60 2-412788-60 Brand:
Vulcan Hart
Availability:
In Stock
(2)
C$67.99 Price reduced from C$77.94
Save C$9.95
Have a Question? +1 (866) 863-0907

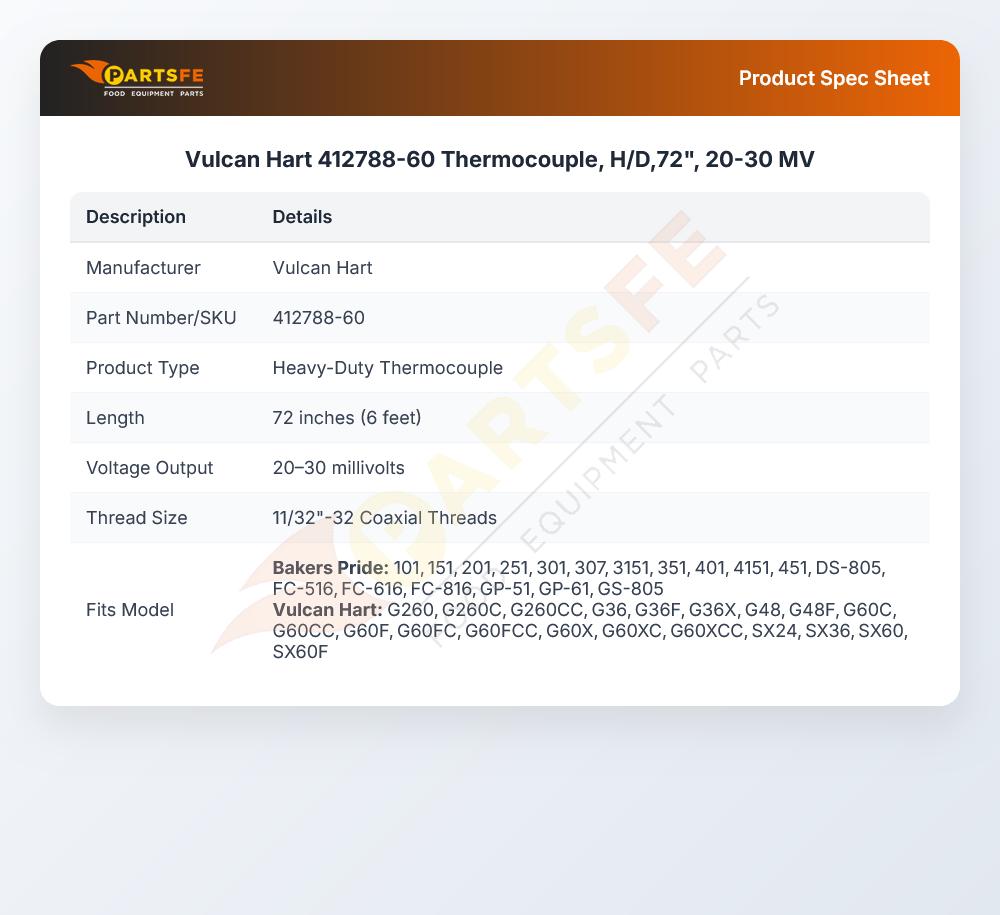

Specifications:

  • Heavy-Duty 72" Thermocouple, 20-30 Milevolt.
  • Coaxial Thermocouple Threads = 11/32"-32

Description

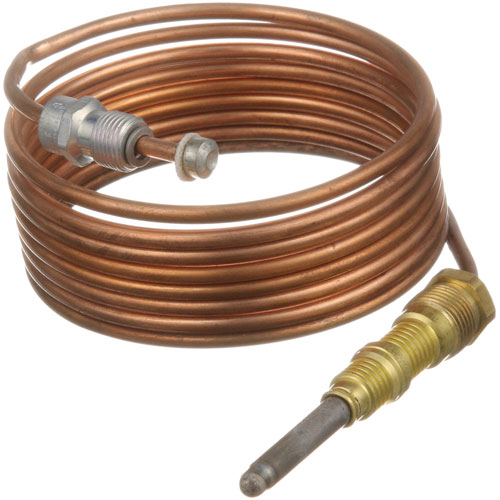

Vulcan Hart 412788-60 Coaxial Thermocouple is 72 inches long, with an output of 20-30 millivolts, which is a temperature-sensing part used with commercial cooking equipment. It is installed in the burner assembly of the appliance and identifies the presence of pilot flames, and transmits information to the gas control system to ensure safe operation. It is used in ranges, ovens and other gas appliances to assist in the control of ignition and the stability of burner operation, which is a vital safety role in the overall gas control system of the appliance.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 2.5 in

BAKERS PRIDE:

AS-M1296A BKPM1296A BKPM1296X M1296A M1296X

COOKING PERFROMANCE GROUP:

351302170058

HOBART:

00-428305-00001 428305-00001 428305-1 HOB00-428305-00001 HOB428305-00001 HOB428305-1

VULCAN HART:

00-412788-00060 00-428305-00001 428305-00001 428305-1 VH00-428305-00001 VH428305-00001 VH428305-1

Step1: Turn off the gas supply and unplug the appliance.

Step2: Remove the old thermocouple from the pilot assembly.

Step3: Inspect the pilot bracket and gas fittings for wear or damage.

Step4: Insert the new thermocouple into the pilot flame bracket.

Step5: Secure with the mounting screw provided.

Step6: Attach the thermocouple nut to the gas valve inlet.

Step7: Turn on the gas and test the pilot flame to ensure proper detection.

Step8: Verify the thermocouple shuts off the gas when the flame is extinguished.
