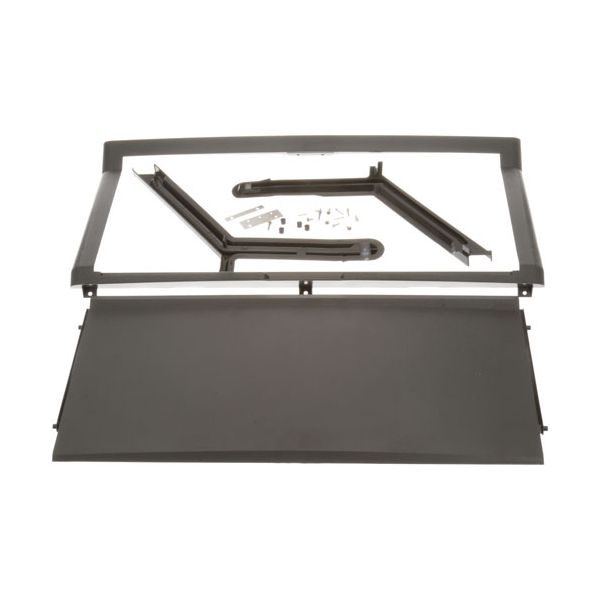

Manitowoc 4304393 Ice Machine Door & Frame Assembly

Be the first to review this product

Special Price CAD$432.90 Regular Price CAD$553.23

In stock

SKU

4304393

Categories: Other Categories, Additional Parts, Door Parts

Manufacturer:

Manitowoc

Manitowoc 4304393 Door & Frame Assembly is an essential part for ice machine models such as QD0272A, QD0273W, QR0270A. The assembly ensure efficient operation of ice machines by providing a secure and insulated barrier which maintains optimal temperature and ice production conditions. Door dimensions are 27-1/16" long with pins and 27" without pins, and 13-1/4" wide. Easy access for maintenance and cleaning, as well as longevity and reliability in commercial environments, is supported by the assembly. A well fitted door and frame assembly improves the ice maker’s energy efficiency, reduces ice melt, and therefore less waste.

Dimensions

Length: 33 In
Width: 19 In
Height: 8 In
Weight: 6.04 lbs

Product Notes

Door And Frame Assembly
Door Length W/ Pins 27-1/16" X 13-1/4"
Door Lenght W/O Pins 27" X 13-1/4"
Manitowoc Qd0272A, Qd0273W, Qr0270A, Qr0271W, Qy0274A,
Qy0275W, Qyp0214A, Qyp0274A

Replaces Parts

MANITOWOC:

040001717, 1L301008, 40001717, 430439, 4304393, MAN040001717, MAN1L301008, MAN40001717, MAN430439, MAN4304393

Reviews

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Manitowoc 4304393 Door And Frame Assembly?

Regularly inspect the door and frame Assembly hinges and pins for wear or corrosion. Wipe down the door and frame surfaces to remove mineral, ice, or water deposits — clean seals if applicable to maintain proper closure and insulation.

How do I install the Manitowoc 4304393 Door And Frame Assembly?

Disconnect power and drain the ice bin.
Remove the existing door/frame by unfastening hinge pins or mounting hardware.
Align the new door and frame assembly with the cabinet opening — ensure hinge pins match and door sits flush.
Secure all mounting hardware, then swing the door to verify smooth movement without binding.
Close the door and check seal/alignment; restore power and test normal operation once reassembled.

What are common issues with the Manitowoc 4304393 Door And Frame Assembly?

Typical problems include worn hinges or broken pins that cause misalignment or uneven door swing, door frame warping, and damage to the sealing surfaces — often resulting in ice melting or water leakage.
