Garland 4529434 Range Ignition Module Natural/LP Gas 24V

SKU: 4529434 2-4529434 Brand:
Garland
Availability:
In Stock
(0)
C$250.66 Price reduced from C$464.22
Save C$213.56
Have a Question? +1 (866) 863-0907

Specifications:

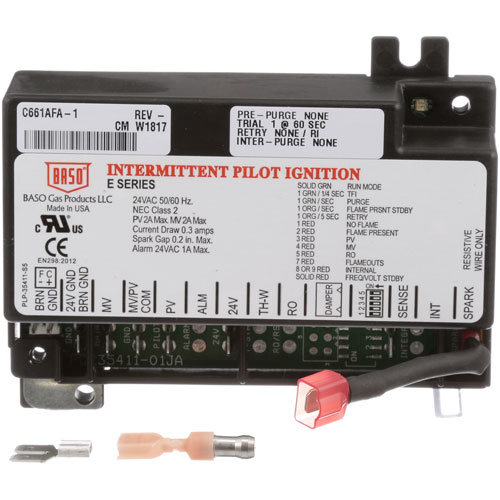

  • Black Baso Ignition Control Box.
  • Ign Module 24V, Nat/Lp Gas, ( Replaces Old # G770Mga-2 ),
  • 0 Sec Prepurge, 50 Sec Trial, No Retry, Inter-Purge 15 Sec.
  • Old Spark Post Ignition Cable Use # 38-1339
  • Includes Adaptor, Round Post To 1/4" Female Tab Term,
  • # 85-1071.

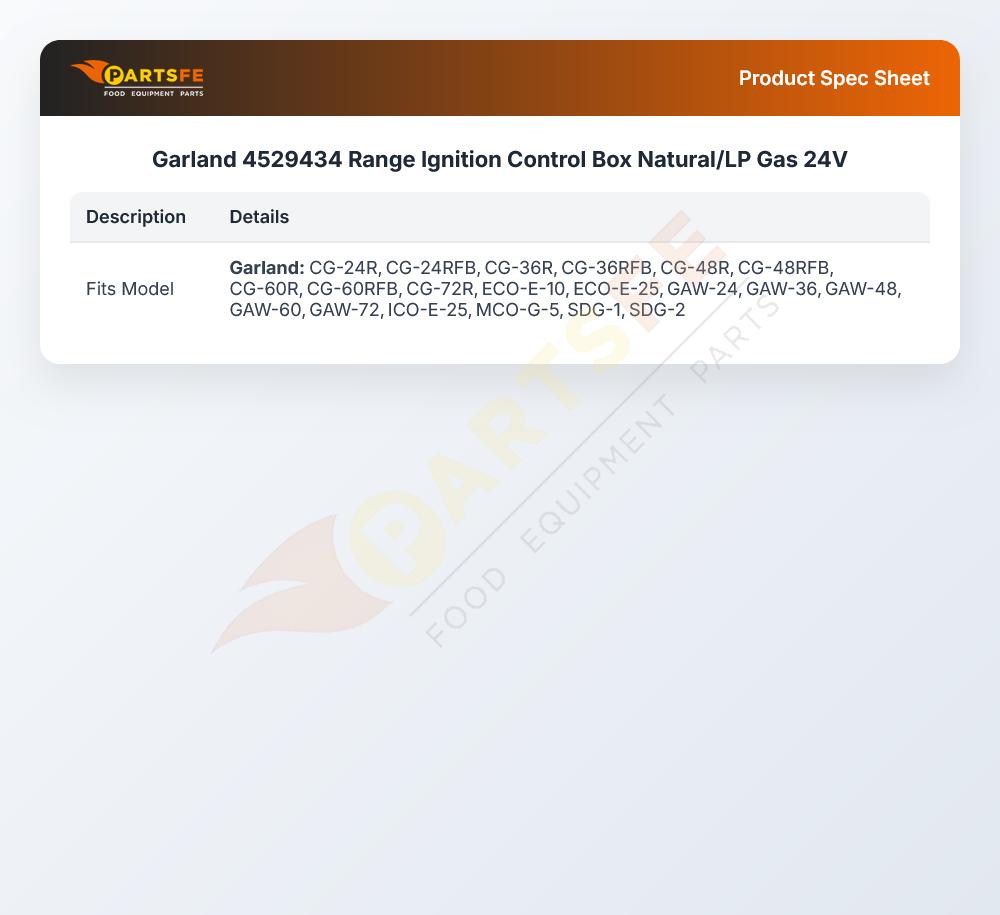

  • Garland Oven All Convection Ovens With Lp Gas & Electronic
  • Ignition. R280, Master Series, Cg-24R, Cg-36R, Cg-48R,
  • Cg-60R, Cg-72R, Eco-E-10, Eco-E-25, Gaw-24, Gaw-36, Gaw-48,
  • Gaw-60, Gaw-72, Ico-E-10, Ico-E-25, Mco-G-5 (Except
  • Foreign Units).
  • Us Range Oven Sdg-1, Sdg-2 Lp Units

Description

The Garland 4529434 Ignition module is an essential part of the equipment used in commercial Ranges, for natural and LP gas ranges. This module works at 24V and its function is to control the ignition of the gas burners through the transmission of electrical signals required for ignition of the burners with out causing any danger to the system. It guarantees proper ignition and at the same time reduces cases of accumulated or uncontrolled gas emission making the kitchen safer.

Dimensions:

  • Weight: 0.62 lbs
  • Length: 3.13 in
  • Height: 7 in
  • Width: 5.13 in

GARLAND:

1516300 1781901 2152700 4528856 4602647

JADE RANGE:

460-251-000 460251000 4625100000

Step1: Disconnect electrical power and shut off the range gas supply completely.

Step2: Open the control compartment to access the existing ignition box.

Step3: Carefully disconnect all wire harnesses and terminals.

Step4: Remove mounting screws securing the old unit.

Step5: Position the new ignition control box in the same location.

Step6: Reconnect wiring exactly as per the wiring diagram.

Step7: Secure the unit firmly with mounting hardware.

Step8: Restore power and gas, then verify proper ignition sequence.
