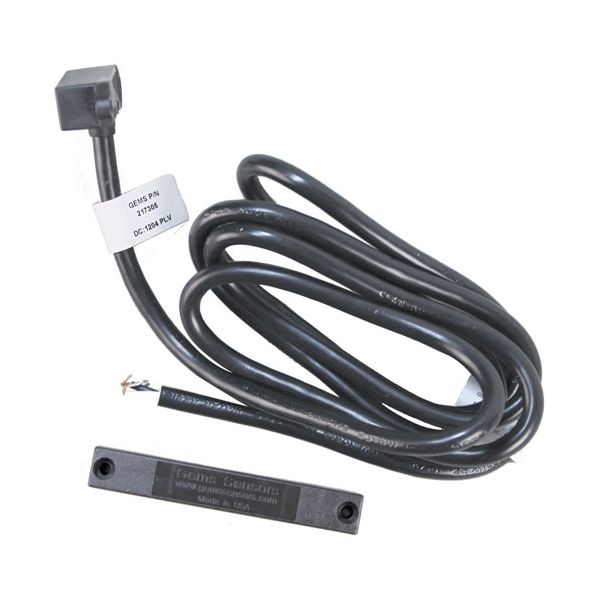

Jackson 5930-111-35-24 Dishwasher Door Switch & Magnet
Specifications:
- Switch W/Magnet
- Magnetic Door Switch, N.O.(Normally Open),
- 2-1/8" Mt Holes,
- 6Ft Sjto 18/2 Conductor Wire
- Jackson 200,, 200B, Lt
- Switch Only Is # 42-1531
- Switch W/Magnet Is # 42-2040
- Switch Complete W/Magnet & Brackets Is # 42-1487
Description
Dimensions:
- Weight: 0.46 lbs
- Length: 6.5 in
- Height: 2.5 in
- Width: 5 in
JACKSON:
05930-111-35-24 59301113524 JAC5930-111-35-24
GEM SENSOR:
217305
-
What maintenance is required for the Jackson 5930-111-35-24 Switch & Magnet?
Regularly inspect the Switch & Magnet for debris, corrosion, or wear — especially around the magnetic contact surfaces. Clean gently and ensure wiring remains intact so the door-switch mechanism works accurately.
-
How do I install the Jackson 5930-111-35-24 Switch & Magnet?
Power off the dishwasher and open the door. Remove the old door switch and magnet assembly. Install the new switch in the original mounting holes (2-1/8" MT holes) and attach the magnet on the door frame. Connect the 6 ft SJTO 18/2 conductor wire per original wiring layout. Close door, restore power, and test that washer only runs with door closed.
-
What are common issues with the Jackson 5930-111-35-24 Switch & Magnet?
Common issues include failure to detect the door closure — often due to weak or misaligned magnet, damaged wiring, or worn switch contacts — causing the dishwasher not to start or to stop mid-cycle.
