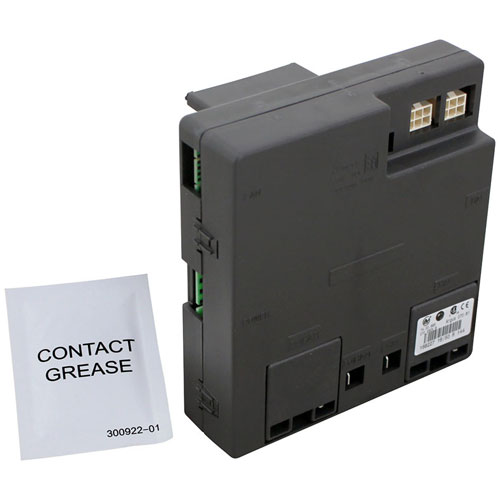

Rational 70.01.530S Oven Automatic Ignition Controller

Step1: Turn off the gas and power to the oven.

Step2: Remove the old ignition controller from the control panel.

Step3: Disconnect all wiring carefully.

Step4: Inspect the mounting area and connectors for damage.

Step5: Install the new ignition controller in the same position.

Step6: Reconnect all wiring according to the diagram.

Step7: Secure the controller with screws or brackets.

Step8: Power on the appliance and test ignition cycles to verify proper operation.

• What maintenance is required for the Rational 70.01.530S Automatic Ignition Controller?

  The Rational 70.01.530S Automatic Ignition Controller should be checked for secure wiring, clean ignition contacts, and proper flame sensing. Keeping the burner area free of grease and debris helps maintain reliable ignition.

• How do I install the Rational 70.01.530S Automatic Ignition Controller?

  • Disconnect power and gas supply to the Rational unit.
  • Access the control compartment and locate the existing ignition controller.
  • Label wiring connections before disconnecting the old module.
  • Mount the new 70.01.530S controller securely in the same position
  • Reconnect all wires as labeled and confirm tight, clean contacts.
  • Restore power and gas, then run an ignition cycle to verify flame sensing and ignition timing.

• What are common issues with Rational 70.01.530S Automatic Ignition Controller?

  Common issues include failed spark generation, weak or inconsistent flame sensing, and intermittent burner ignition. Heat exposure or loose wiring can also lead to ignition delays or lockouts.

• What are the operating limitations of the Rational 70.01.530S Automatic Ignition Controller?

  Automatic ignition controllers for Rational units typically operate on low-voltage control circuits around 24V and must withstand high-temperature cooking environments.
