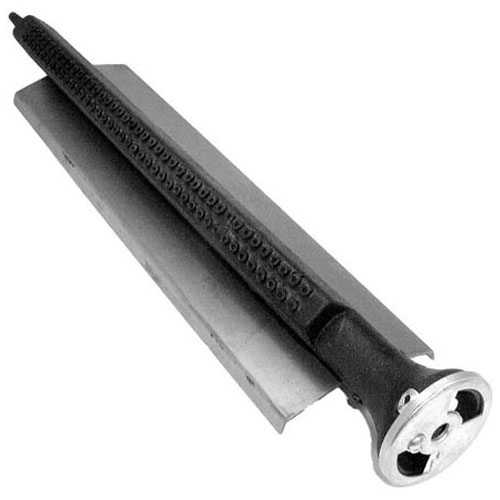

Hobart 700871A Burner W/Shield Deflector & Air Shutter CI 2.408" OD 7/16" Hole 16-1/2" X 4-3/8"

SKU: 700871A 2-700871A Brand:
Hobart
Availability:
In Stock
(0)
C$234.61 Price reduced from C$316.00
Save C$81.39
Have a Question? +1 (866) 863-0907

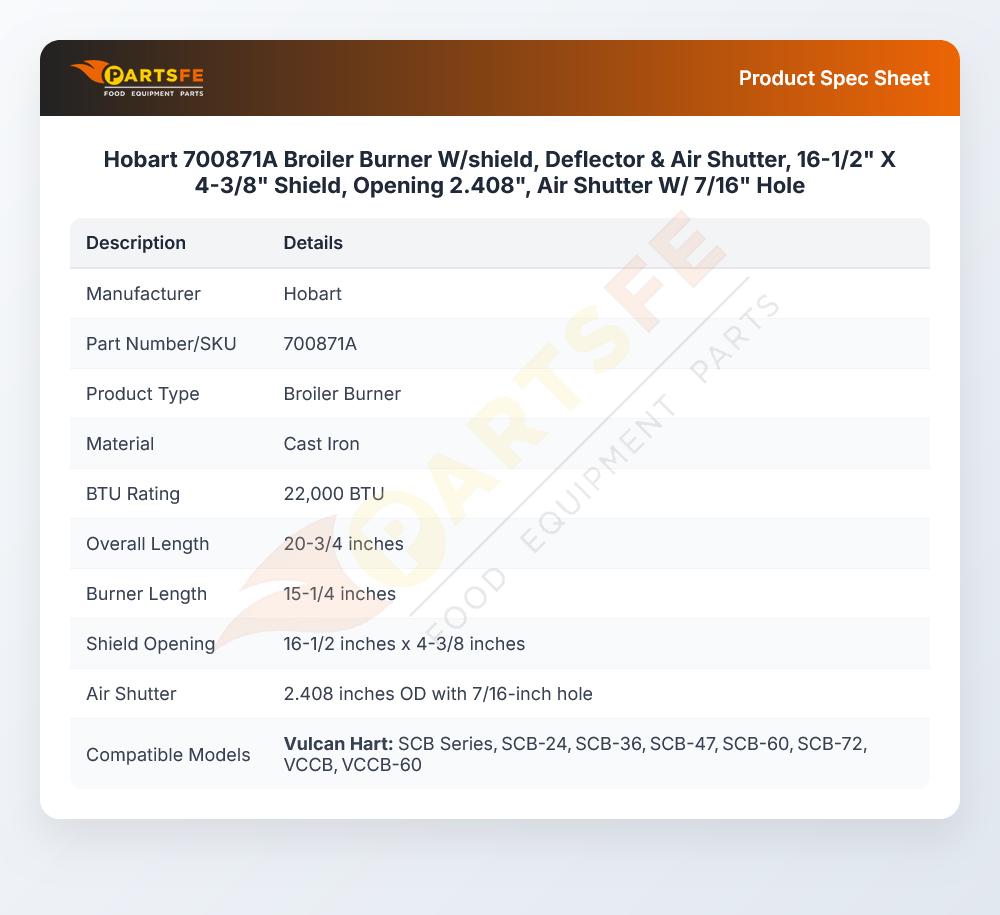

Specifications:

  • Cast Iron Broiler Burner W. Deflector & Air Shutter
  • 22,000 Btu.
  • [ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
  • Opening 2.408" Od
  • Air Shutter W/ 7/16" Hole - # 26-1472,
  • For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
  • Vulcan Vccb
  • Wolf Broiler Scb

Description

The Hobart 700871A Burner W/Shield Deflector & Air Shutter CI 2.408" OD 7/16" Hole 16-1/2" X 4-3/8" regulates the mix of gas and air to support controlled combustion within commercial heating equipment. The shield deflector guides the flame pattern while reducing exposure to surrounding components during operation. The air shutter featuring a 7/16" hole adjusts airflow entering the burner to influence flame formation and ignition behavior in compatible gas systems. It is positioned within the burner assembly, aligning with a 16-1/2" x 4-3/8" shield opening and a 2.408" air shutter configuration for proper fitment in the designated equipment housing area.

Dimensions:

  • Weight: 10.69 lbs
  • Length: 8.13 in
  • Height: 1.94 in
  • Width: 1.94 in

HOBART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871-A 871-A 871A

VULCAN HART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871-A 871-A 871A VH700871-4
