Hobart 723258 Thermostat W/Dial 3/16" X 8" 36" CAP 150-400°F BJWA
Special Price CAD$298.76 Regular Price CAD$402.38
In stock
SKU
723258
Manufacturer:

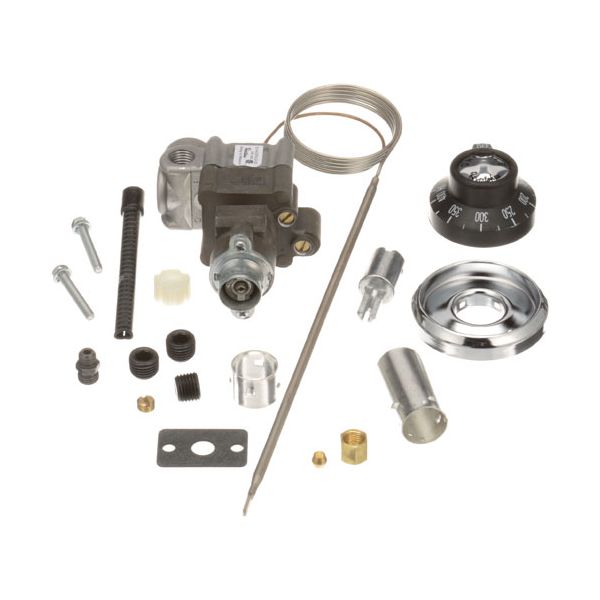

The Hobart 723258 Thermostat W/Dial BJWA 3/16" X 8" Cap 36" is a temperature control part used in commercial cooking systems. It uses internal temperature, sensing it using a sensing bulb and capillary tube assembly and transmits it to the control system. The dial can be manually adjusted to set temperatures between 150 and 400°F, allowing the operator to adjust the amount of heat being produced. It is used in appliance systems as the primary control between the input provided by the user and the heating element or gas control valve to assist in maintaining a steady operating temperature to support consistent performance under food preparation conditions.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
