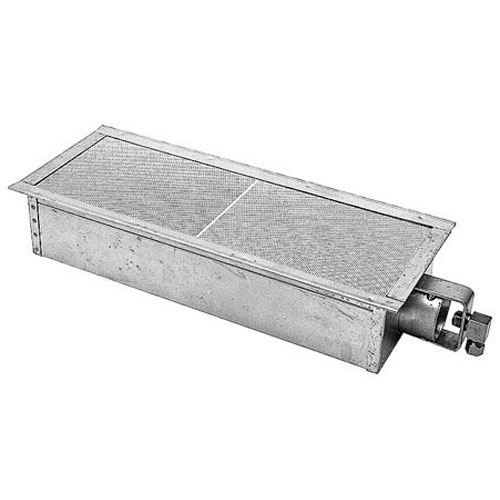

Vulcan Hart 00-844516-00016 Oven Infrared Burner Top Box 16-3/4" X 6-3/4" Ceramic Burn Area 15-1/4" X 5-1/4"

SKU: 00-844516-00016 2-00-844516-00016 Brand:
Vulcan Hart
Availability:
In Stock
(0)
C$1,287.60 Price reduced from C$1,795.10
Save C$507.50
Have a Question? +1 (866) 863-0907

Specifications:

  • Infrared Burner,
  • [ Orifice - #46 W/ Thd Bracket ] 185,000 Btu
  • Top Of Box 16-3/4" X 6-3/4"
  • Ceramic Burn Area 15-1/4" X 5-1/4",
  • Box Only 15-5/8" X 5-3/4"
  • Garland
  • Rankin-Delux Broiler Rdcm 15, Rdgm Cheesemelter.
  • Vulcan Broiler Icm
  • Us Range Cheesemelter Ircma 24,48,72,96,120,144
  • This Burner Can Substitute For Jade Burner # 26-3690
  • But Is Not Exact.

Description

Vulcan Hart 00-844516-00016 Oven Infrared Burner has a ceramic burn area of 15-1/4”x 5-1/4” and is suitable for many types of cooking. It uses infrared technology that targets the food surfaces, making it cook foods faster and retain the foods’ natural moisture, and flavors. This burner is essential for commercial uses, increasing performance and energy use while at the same time minimizing emissions. The heat is evenly distributed thereby producing diverse meal uses such as grilling, baking and broiling that in turn yields better quality meals with less wastage.

Dimensions:

  • Weight: 7.4 lbs
  • Length: 19.5 in
  • Height: 3.3 in
  • Width: 7 in

GARLAND:

222105-1 222105-2

HOBART:

844516-00016 844516-16

RANDELL:

RDCM-08

RANKIN DELUX:

RDCM-08

ROYAL RANGE:

1604

VULCAN HART:

844516-00016 844516-16 VH844516-16

Step1: Turn off the oven power and allow it to cool completely.

Step2: Remove the oven’s top panel to access the existing burner assembly.

Step3: Disconnect the old burner and carefully remove it from the mounting.

Step4: Position the new infrared burner in place and secure it with mounting hardware.

Step5: Reconnect any wiring, replace the panel, restore power, and test for proper operation.

  • What maintenance is required for the Vulcan Hart 00-844516-00016 Infrared Burner?

    Clean the burner surface regularly to remove grease and carbon buildup that can affect heat distribution. Inspect the ceramic tiles and ports for blockage to keep the infrared flame pattern consistent.

  • How do I install the Vulcan Hart 00-844516-00016 Infrared Burner?

    • Turn off gas and power to the unit.
    • Remove the existing burner from its mounting brackets.
    • Position the burner and secure it in place.
    • Reconnect the gas line, check for leaks, and restore power.
    • Ignite the burner and verify even infrared heat output.

  • What are common issues with the Vulcan Hart 00-844516-00016 Infrared Burner?

    Common issues include cracked ceramic tiles, uneven heating from clogged ports, and weak flames due to gas pressure problems. Regular cleaning and inspection help prevent performance loss.

  • Which Vulcan Hart models are compatible with the Vulcan Hart 00-844516-00016 Infrared Burner?

    This infrared burner is compatible with Vulcan Hart Infrared Cheesemelters ICM24, ICM36, and ICM48.
