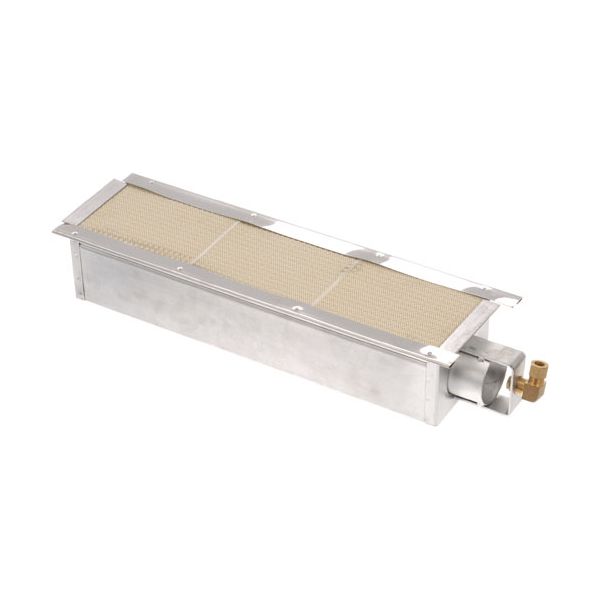

American Range A14016 Infrared Boiler Burner 17-3/8" X 5-1/8" OD
Special Price CAD$411.68 Regular Price CAD$701.48
In stock
SKU
A14016
Manufacturer:
The American Range A14016 Infrared Boiler Burner is intended to be used in other compatible commercial cooking equipment. This burner has an outside diameter of 17-3/8 inches by 5-1/8 inches and generates infrared heat which is used in boiling or cooking purposes. It is usually used in the restaurant and kitchen conditions. It is located in the assembly and it operates with gas valves and ignition parts to provide controlled heat. The burner, as part of the appliance system, is directly involved in the heat production, which helps to maintain the heat production of the appliance during the conditions of the service.
Dimensions
- Length: 17.5 In
- Width: 5.25 In
- Height: 5 In
- Weight: 0 lbs
Product Notes
- Infra-Red Salamander Burner
- 17-3/8" X 5-1/8" Od Top Of Box, Weight 6.16 Lbs.
- Burner Area - 3 Ceramic Tiles.
- Includes Universal Orifice #48. ( 3/8" Mpt X 3/8" Cct )
- Can Be Reamed Out To #42 For Nat Gas.
- Oem #A29103, Ref# 10610 Spud Orifice #42 (Nat)
- Oem #A29104, Ref# 10611 Spud Orifice #52 (Lpg)
- American Range
- Broiler Salamander Model Arsb
- ***Verify The Size Of The Burner The Customer Is Ordering -
- American Range Has Conflicting Information On Their Ir
- Burners.
- Cust May Need Part Number 263691.****
