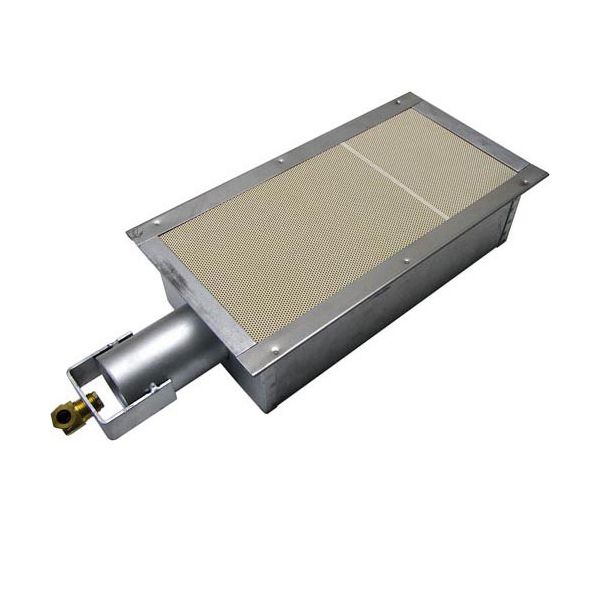

Royal Range 1603 Infra-Red Broiler Burner Small B-15
Special Price CAD$593.76 Regular Price CAD$878.13
In stock
SKU
1603
The Royal Range 1603 Infra-Red Broiler Burner Small B-15 produces high intensity and even heat by its infrared design, which radiates high temperatures directly on the cooking surface to broil effectively. It works by directing gas through a dedicated burner system that converts it to radiant energy, which produces steady heat to cook food. This element is normally installed in commercial broilers as part of the cooking chamber where it forms the major heat source in the process of grilling and broiling. It is small and can be fitted into compatible broilers without affecting the heating set up that gives the better performance.
Manufacturer:
Dimensions
- Length: 17 In
- Width: 7.5 In
- Height: 3.3 In
- Weight: 5.67 lbs
Product Notes
- Infra-Red Broiler Burner
- Top Of Box, 12-3/4" X 7" Od, Weight 5.6 Lbs.
- Ceramic Area 11-1/4" X 5-1/8"
- Bottom Of Box 11-11/16" X 5-3/4" X 3-3/8"H
- Venturi 2.122" Dia Od X 2-5/16"L, W/ Bracket 4-3/16"L
- Orifice #48 X 3/8" Cct
- Total Length W/O Orifice 16-1/2"
- American Range
- Broiler Arcm Cheesemelter, Avb Vertical Broiler.
- ***Verify The Size Of The Burner The Customer Is Ordering -
- American Range Has Conflicting Information On Their Ir
- Burners.
- May Need Part Number 263692***
