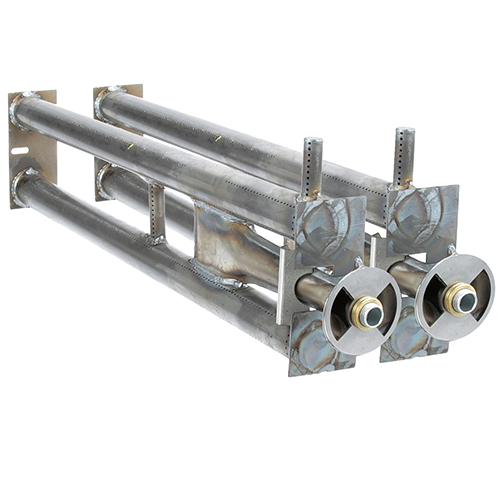

Blodgett 7942 Oven Burner Assembly Set Of 2
Specifications:
- Steel Burner Set, Left & Right
- [ 30" X 6" ] [ Orifice - 9/16" Hole ] W/ Air Shutter,
- 3" Plate, Set Of 2
- No Longer Comes With Front Pilot Bracket Welded On.
- Blodgett Oven Series: 1000, 1060 (Prior To 8/86).
- Model (1060-Prior To 8/86) Old Style No Pilot Bracket
- For New Style Order # 24-1121 Burners
- That Have Pilot Bracket On Burner.
Description
Dimensions:
- Weight: 25.1 lbs
- Length: 33 in
- Height: 9.5 in
- Width: 10 in
Step1: Shut off the gas supply completely and let the oven cool.
Step2: Remove the old burner assembly carefully, keeping track of connections.
Step3: Position the new assembly securely in the mounting brackets.
Step4: Reconnect all gas and ignition connections, tightening fittings carefully.
Step5: Restore gas and test for proper ignition, flames, and leak-free operation.
-
What maintenance is required for the Blodgett 7942 Burner with Air Shutter?
Remove and brush out the burner slot and air-shutter to eliminate carbon buildup. Inspect the 9/16″ orifice and adjust the air shutter clearance if flame shape becomes lazy or yellow-tipped.
-
How do I install the Blodgett 7942 Burner with Air Shutter?
- Turn off gas supply and electrical power to the oven; allow the oven chamber to cool.
- Removed the old burner tubes 30″ × 6″ steel section including the air shutter housing.
- Align the replacement 7942 burner set left & right in the respective positions, ensuring the 3″ mounting plates sit flush.
- Secure all fasteners and connect the air shutter assembly, verifying the linkage is free and centered.
- Reconnect the gas line with correct fittings, purge the line per local code, restore power and supply.
- Light the burner and adjust the air shutter so that the flame is crisp, blue and stable without lifting or yellow tips.
-
What are common issues with the Blodgett 7942 Burner with Air Shutter?
A common issue is clogged burner orifices or slots leading to uneven heat. Also, mis-adjusted air shutter can cause poor flame quality and increased soot or yellow tips. The 30″ × 6″ size is specified for older Blodgett 1000/1060 ovens.
-
What are the operating limitations for the Blodgett 7942 Burner with Air Shutter?
This burner set measures 30″ × 6″ and uses a 9/16″ orifice hole, designed as a left & right pair for the Blodgett 1000/1060 series ovens
-
Which Blodgett models are compatible with the 7942 Burner with Air Shutter?
It is compatible with Blodgett Pizza Oven, including model 1060
Customer Reviews
Write a Review
-
Even Flame
Flame distribution returned to normal cooking performance.
-
Great product
Burners are perfect, oven heats up fast.
