Groen CROWN-116-4804 Fryer Safety Valve Natural Gas 1/2" FPT 1/2" Side Outlets

SKU: CROWN-116-4804 2-CROWN-116-4804 Brand:
Groen
Availability:
In Stock
(0)
C$359.30 Price reduced from C$483.94
Save C$124.64
Have a Question? +1 (866) 863-0907

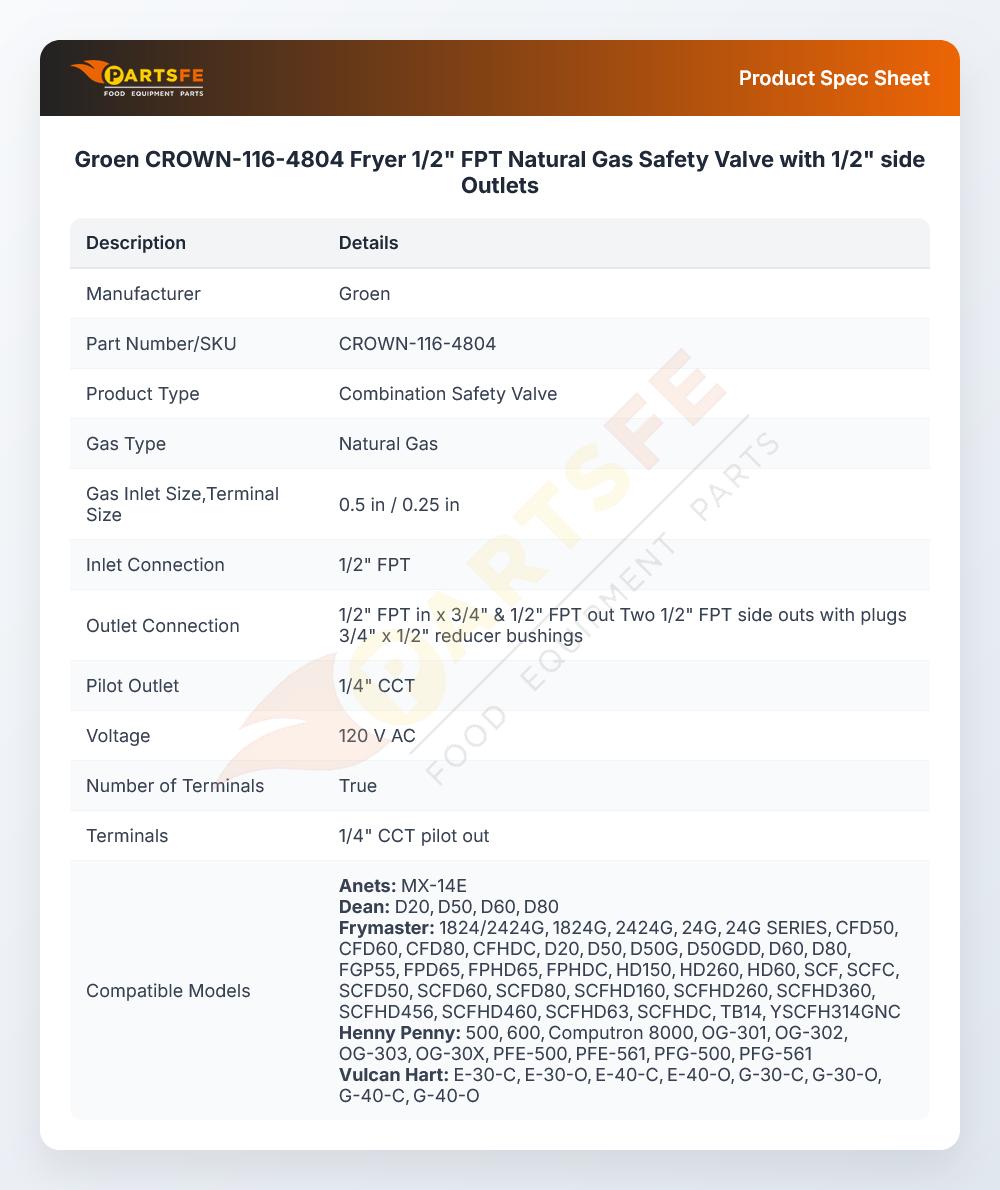

Specifications:

  • Nat Gas Safety, 1/2" Fpt In, 3/4" & 1/2" Out. W/ (2) 1/2"
  • Side Outs W/ Plugs, 3/4" X 1/2" Reducer Bushings,
  • 1/4" Cct Pilot Out, Uses Thermocouple.
  • For Nat To Lp Gas Conversion Kit Use # 51-1470
  • Model 7000 Ber-120, 120 Vac Actuator, Mfg# 700-452
  • Dean Fryer 1824/2424G, 1824G, 2424G, D20, D50,
  • D50G, D50Gdd, D60, D60Gs, D80, Fpd65, Fphd65, Tb14
  • Henny Penny Fryer 600, Og- 301,302,303
  • Market Forge Oven 2500, 2700
  • Gas Tilt Skillet 1500 1700,
  • Southbend Kettle Kslg W/Standing Pilot. Oven X,Xs
  • Vulcan Tilt Skillets Model E-30-C, E-30-O, E-40-C, E-40-O,
  • G-30-C,G-30-O, G-40-C, G-40-O

Description

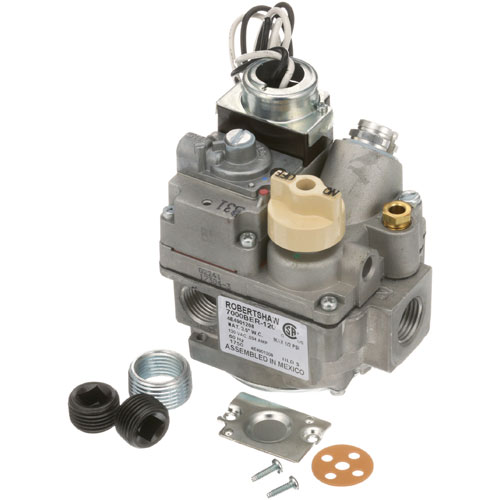

The Groen CROWN-116-4804 Safety Valve natural gas works by controlling the amount of gas that gets to the fryer, making sure that the correct amount of pressure is maintained when it is in operation. It is activated automatically to avoid over-pressurization and the fryer can operate within the offered gas parameters. The valve is easy to integrate with and is designed with 1/2" FPT connections and side outlets, which allow it to be installed on commercial fryers. This component is designed to connect directly with the gas intake system of the fryer making the connection process much easier and providing a uniform flow of gas.

Dimensions:

  • Weight: 2.28 lbs
  • Length: 5.75 in
  • Height: 3.5 in
  • Width: 4.75 in

ANETS:

P8903-40

BLODGETT:

43019

CROWN STEAM:

116-4804

DEAN:

810-2156 8102156

FRYMASTER:

1143 810-2156 8102156 FM810-2156 FM8102156

HENNY PENNY:

16216

HOBART:

00-840126-00011 00-840343-00001 00-840343-00002 40126-11 40126-12 40343-A01 40343-A02 840126-00011 840126-11 840343-00001 840343-00002 840343-1 840343-2

MARKET FORGE:

10-5806 10-6456 10-6465 97-5548 975548 98-1481 S10-6456 S10-6465 S10-6468

PITCO:

P8903-40

SOUTHBEND:

1161439 1164804

VULCAN HART:

00-840126-00011 00-840343-00001 00-840343-00002 40126-11 40126-12 40343-A01 40343-A02 840126-00011 840126-11 840343-00001 840343-00002 840343-1 840343-2

  • What maintenance is required for the Groen CROWN-116-4804 Gas Safety Valve?

    Inspect the Groen CROWN-116-4804 Gas Safety Valve regularly for gas line debris and ensure the inlet screen is clear. Check fittings for leaks and verify the valve opens and closes smoothly during operation.

  • How do I install the Groen CROWN-116-4804 Gas Safety Valve in an oven?

    • Turn off gas supply and disconnect electrical power.
    • Access the burner compartment and locate the existing gas safety valve.
    • Disconnect gas lines and electrical leads, noting their original positions.
    • Remove mounting screws and take out the old valve.
    • Position the new Groen CROWN-116-4804 Gas Safety Valve and secure it with mounting hardware.
    • Reconnect gas lines using thread sealant rated for gas applications.
    • Reattach electrical connections following the original layout.
    • Restore gas and power, then leak-test all fittings before firing the oven.

  • What are common issues with the Groen CROWN-116-4804 Gas Safety Valve?

    Common issues include internal sticking due to debris in the gas line, which can prevent proper opening. Coil or solenoid failures may also occur, leading to inconsistent ignition or burner shutdown.

  • What are the operating limitations of the Groen CROWN-116-4804 Gas Safety Valve?

    Gas safety valves of this type typically operate on 24V control circuits and are rated for standard commercial gas pressures of 3.5–5" WC for natural gas.
