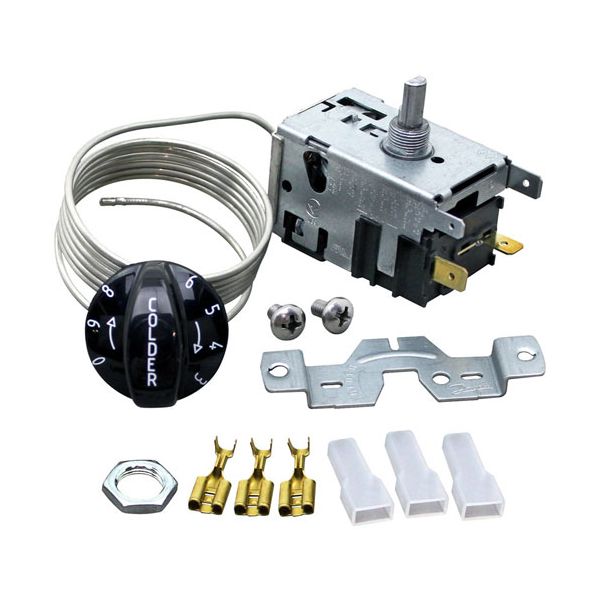

True E800313 Temperature Control 9°F-36.5°F
Special Price CAD$261.25 Regular Price CAD$351.87
In stock
SKU
E800313
Manufacturer:
The True E800313 Temperature Control regulates cabinet temperature within a range of 9°F to 36.5°F in the commercial equipment. It is mounted in the refrigeration control circuit it monitors the cabinet temperature and responds to temperature changes by controlling the cooling system. When the sensed temperature rises above the control setting the switch signals the refrigeration system to operate. As the cabinet reaches the selected temperature the control interrupts the circuit to stop cooling. This component maintains the programmed storage temperature and coordinates compressor operation with the refrigeration system’s temperature requirements.
Dimensions
- Length: 3.5 In
- Width: 1.3 In
- Height: 4 In
- Weight: 0.3 lbs
Product Notes
- Cooler Control, 9F To 36.5F, Cut In 22.5F, Cut Out 16.5F,
- 36" Cap, Dial 1-9 "Colder" , D Stem Shaft .156" / 3.98 mm,
- Mount Hole 1.3" / 33.13 mm Ctrs,
- Includes Dial, Qty 2 Connectors 1/4" Tabs, Qty 2 Mounting
- Screws M4-0.7 X 6 mm
- True Cooler Model Tssu-27-8, Tssu 48,60,72
- True Tpp-60D-2 115V, True, Tssu Series, Tssu-48,
- Tssu-48-8-47, Tuc-48, Tuc-60, Tuc-67D-2, Twt-48, Twt-60
