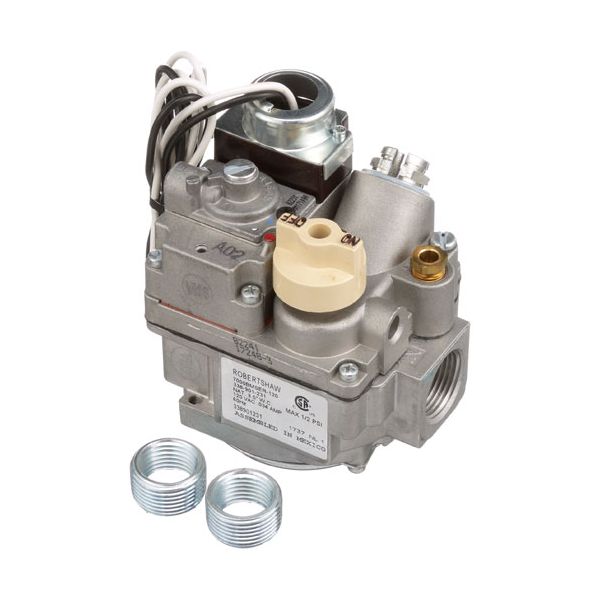

Frymaster FM806-1452 Gas Control 120V 60Hz
Special Price CAD$369.48 Regular Price CAD$622.05
In stock
SKU
FM806-1452
Manufacturer:
The Frymaster FM806-1452 Gas Control is a system to manage the natural gas flow in a compatible commercial appliance. It is designed to operate on a 120V, 60Hz electrical supply and regulates gas to the burner, and including secure features necessary for proper operation. It is widely used in restaurants, fast food outlets and kitchens as a part of the cooking process to ensure the uniform cooking. The control valve is an integral part of the ignition system, and t is vital for the operation of the burner.
Dimensions
- Length: 5.75 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 2.4 lbs
Product Notes
- Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
- 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
- W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
- Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
- 500Mv Under Load ,
- Thermopile, Push On, For Frymaster, # 51-1348.
- Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
- Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
- Kj3Fc,
- Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
- Models:24R, 18Wks, 14F
