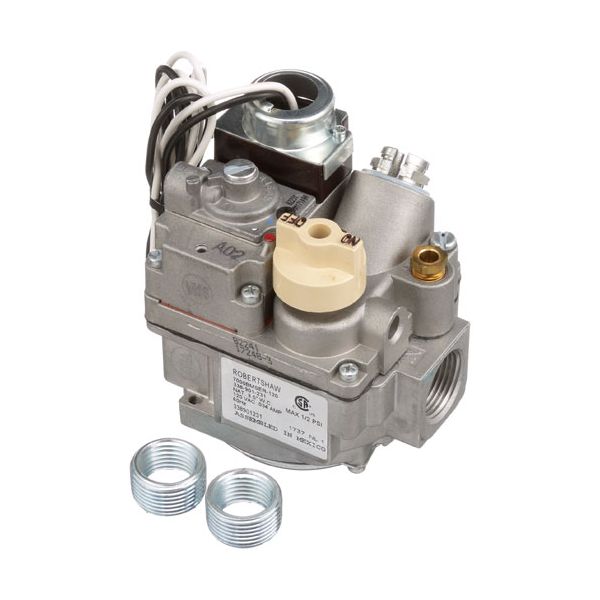

Frymaster FM8070308 Gas Control 120V 60Hz
Special Price CAD$369.48 Regular Price CAD$622.05
In stock
SKU
FM8070308
Manufacturer:
The Frymaster FM8070308 Gas Control is a replacement compatible commercial gas control unit. It controls and regulates the gas to the burner assembly, it provides ignition sequencing and integrated operation while working on a 120V, 60Hz electrical supply. Usually used in restaurants, fast food and kitchens for equipment maintenance or repair. It is the part of gas control system in the system, which supports to stabilize the burner operation and heat output, resulting in consistent performance in regular commercial cooking use.
Dimensions
- Length: 5.75 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 2.4 lbs
Product Notes
- Nat Gas Safety, 3/4" Fpt In/Out, 300.000 Btu, (2) 3/4" X
- 1/2" Reducer Bushings, 120 Vac Actuator, Blk & Wht Wires,
- W/Eco Slotted Thermopile Magnet, Model 7000 Bmser-120
- Thermopile, H231, T-103, # 51-1122, Screw In Type, 7/16-27
- Brass Pile Holding Nut, 3/8-32 Thread, For Magnet, 750Mv,
- 500Mv Under Load ,
- Thermopile, Push On, For Frymaster, # 51-1348.
- Frymaster Fryer Mac(50,150,250,350), Mj(41,41E,45), Mjcf,
- Mjcfe. Series: Fm, Mac50.Fmcfe, Fmcfec, J3F, J65X, Jcfx,
- Kj3Fc,
- Pitco Fryer Gas Fryers Which Are Rated @ Over 100,000 Btu.
- Models:24R, 18Wks, 14F
