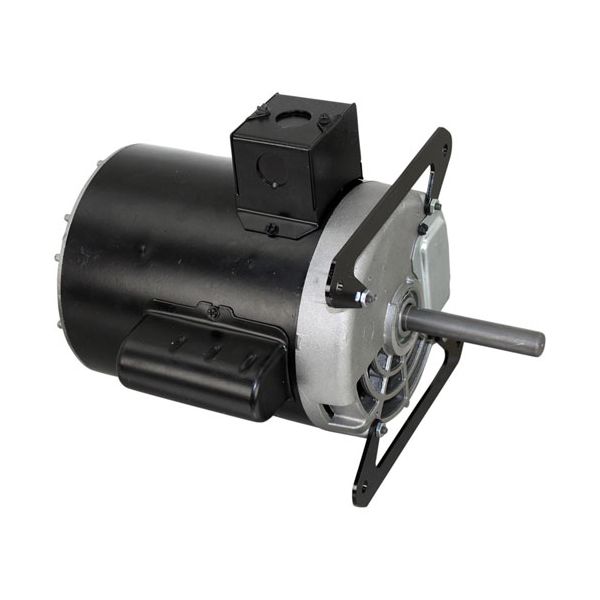

Garland GL1686701 Convection Oven Blower Motor 0.0075/0.21 HP 2-Speed 1725/1140 RPM 115V 1PH
Special Price CAD$325.62 Regular Price CAD$438.58
In stock
SKU
GL1686701
Manufacturer:
The Garland GL1686701 Convection Oven Blower Motor is a two-speed airflow part fitted in compatible convection ovens. It has a rated power of 0.0075/0.21 horsepower and a speed of 1725 and 1140 RPM at 115V in single phase, which is used to drive the blower fan to circulate hot air in the cooking chamber. It is installed in the oven casing during service or replacement to provide even distribution of heat so that the same cooking results are obtained. This motor provides bake and roast operates by ensuring even temperatures and thermal performance.
Dimensions
- Length: 15.25 In
- Width: 10.5 In
- Height: 10.5 In
- Weight: 25 lbs
Product Notes
- Blower Motor, 2 Speed.
- [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
- [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
- [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
- Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
- 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
- Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
- Spaced On 4" Centers Bracket To Bracket And On Each Bracket
- They Are Spaced 4.097"
- Garland Blower Wheel # 26-1464
- Us Range Blower Wheel # 26-1464
- Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
- Tim Ortons Spritzer,
- Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
- Sumg-100
