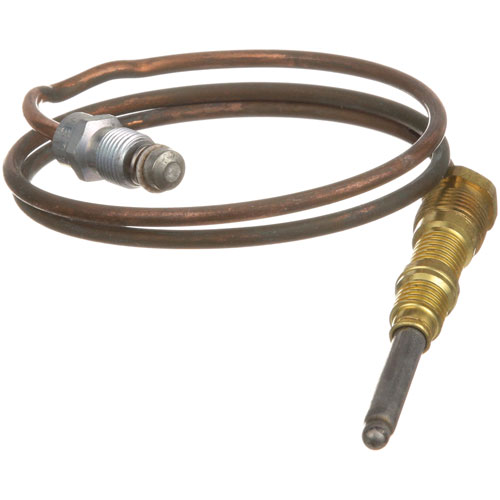

Pitco P5047540 Fryer HD Thermocouple 24"L 20-30 mV 1900 Series

SKU: P5047540 2-P5047540 Brand:
Pitco
Availability:
In Stock
(2)
C$42.69 Price reduced from C$48.94
Save C$6.25
Have a Question? +1 (866) 863-0907

Specifications:

  • 1900 Series Heavy Duty Thermocouple 24" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets
  • Fryer Where Applicable
  • Cecilware
  • Fryer Gf(8,16,28), Fm28

Description

The Pitco P5047540 Fryer HD Thermocouple 1900 Series is an essential component for commercial equipment. It measures 24 inches in length and delivers 20-30 mV to measure the temperature of the oil to control the flow of gas. This is a component that is installed by the service when it is being repaired or maintained to achieve accurate heating control and correct operation. The gas valves and controls are used to avoid overheating, to have uniform cooking temperatures and to ensure it works. Commercial kitchens and foodservice conditions are necessary to facilitate use and maximum cooking performance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 4.25 in
  • Height: 1 in
  • Width: 1 in

This Part Fits the Following Models

100 models
Pitco 18-2WKSUFM Pitco 34FF Pitco 34P Pitco 35C+ Pitco 45C Pitco 65C+ Pitco BK-SG14RS-PCFM Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14SD Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18S Pitco SG18SD Pitco SGC Pitco SGF18 Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SRTG14 Pitco SSH55 Pitco SSH55-2FD Pitco SSH55SSTC-2FD Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60W/C-S/FD Pitco SSH75 Pitco SSH75RS Vulcan Hart 12 Vulcan Hart 12 OPEN TOP Vulcan Hart 148L Vulcan Hart 148LC Vulcan Hart 160L Vulcan Hart 160L77R Vulcan Hart 160LC Vulcan Hart 172L Vulcan Hart 172LC Vulcan Hart 24 GRIDDLE Vulcan Hart 24L Vulcan Hart 24S Vulcan Hart 260L Vulcan Hart 260LC Vulcan Hart 260LCC Vulcan Hart 272L Vulcan Hart 272LC Vulcan Hart 272LCC Vulcan Hart 36 GRIDDLE Vulcan Hart 36C Vulcan Hart 36FL77R Vulcan Hart 36L Vulcan Hart 36L77R Vulcan Hart 36LC Vulcan Hart 36S Vulcan Hart 481L Vulcan Hart 481LC Vulcan Hart 48C Vulcan Hart 48L Vulcan Hart 48S Vulcan Hart 48SS Vulcan Hart 60CS Vulcan Hart 60FL77R Vulcan Hart 60L Vulcan Hart 60L77R Vulcan Hart 60LC Vulcan Hart 60LCC Vulcan Hart 60SC Vulcan Hart 60SS Vulcan Hart 72CC Vulcan Hart 72CS Vulcan Hart 72L Vulcan Hart 72LC Vulcan Hart 72LCC Vulcan Hart 72SC Vulcan Hart 72SS Vulcan Hart 924A Vulcan Hart 924RX Vulcan Hart 936A Vulcan Hart 936RX Vulcan Hart 948A Vulcan Hart 948RX Vulcan Hart 960A Vulcan Hart 960RX Vulcan Hart 972A
Showing of 100.0

CECILWARE:

F243A F243F GMF243A GMF243F

DEAN:

807-0699 8070699

FRYMASTER:

807-0699 8070699 FM807-0699 FM8070699

GRINDMASTER:

F243A F243F

HOBART:

00-412788-00003 00-412788-00020 412788-00003 412788-00020 412788-20 412788-3 HOB00-412788-00003 HOB412788-00003 HOB412788-3

MAGIKITCH'N:

2J-P5047540 MKP5047540

PITCO:

PTP5047540

SOUTHBEND:

1173576

STAR MFG:

2J-P5047540

STERO:

TOARH36

U-LINE:

1900-024

VULCAN HART:

00-412788-00003 00-412788-00020 00-412788-00024 412788-00003 412788-00020 412788-00024 412788-20 412788-24 412788-3 VH00-412788-00003 VH412788-00003 VH412788-3

Step1: Shut off the gas and allow the appliance to cool.

Step2: Locate the thermocouple at the pilot assembly.

Step3: Disconnect it from the gas valve and bracket.

Step4: Install the new thermocouple in position.

Step5: Tighten connections carefully.

Step6: Restore gas and test pilot flame response for proper operation.
