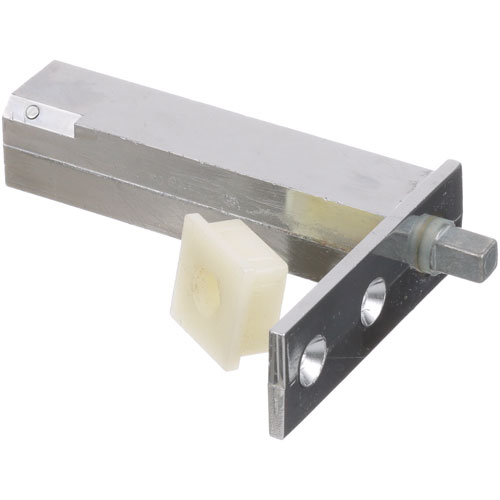

Delfield 3230010 Refrigerator Concealed Cartridge Hinge

SKU: 3230010 2-3230010 Brand:
Delfield
Availability:
In Stock
(7)
C$23.72 Price reduced from C$89.90
Save C$66.18
Have a Question? +1 (866) 863-0907

Description

The Delfield 3230010 Concealed Cartridge Hinge is used to allow the door to move in the compatible refrigerator systems. This is a hidden mechanism that enables the door to swing but remain in the right position during the opening and closing processes. Installed in the hinge mounting area and is vital in the fixing of the door to the cabinet structure and also in facilitating controlled movement. It is used in commercial food storage for the maintenance of consistent door positioning to aid in internal temperature conditions. This is to maintain the stability of the refrigerator's operation and the balanced support during usage.

Dimensions:

  • Weight: 0.63 lbs
Manufacturer Name: Delfield
Product Number: 3230010
OEM Part Number: 3230010
Product Description: Concealed Hinge, W/Extended Pin, No Stop.;Reversible Cartridge;Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,;4448N-12, 4448N-18M, 4448N-8, 4460N, 4460N-12, 4460N-12M,;4460N-18M, 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12,;4464N-12M, 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N,;4472N-12, 4472N-18M, 4472N-24M, 4560N, 6025Xl-S, 6025Xl-Sh,;6051Xl-S, 6051Xl-Sh, 6076Xl-S, 6076Xl-Sh, 6125Xl-S,;6125Xl-Sh, 6151Xl-S, 6176Xl-S, 6176Xl-Sh, D4427n, D4432n,;D4448n, D4448n-18M, D4460n, D4464n, D4472n, St4427n,;St4432n, St4448n, St4460n, St4464n, St4472, St4472n,;St4560n, Std4427n, Std4432n, Std4448n, Std4460n, Std4464n,;Std4472n, Uc4048, Uc4148, Uc4427n, Uc4432n, Uc4448n,;Uc4460n, Uc4464n, Uc4472, Uc4472n, Uc4560n, Ucd4427n,;Ucd4432n, Ucd4448n, Ucd4460n, Ucd4464n, Ucd4472n
Similar Models:000BFW0030 - Delfield, 3234225 - Delfield, 3237509 - Delfield, 3237516 - Delfield, 3237516S - Delfield, 3237516-S - Delfield
Dimensions:
Length:4.625in/11.75cm
Width:3in/7.62cm
Height:1in/2.54cm
Weight:0.5lbs/226.8g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFeCanada!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or [email protected]

DELFIELD:

000BFW0030 3234225 3237509 3237516 3237516-S 3237516S DEL3230010 DEL3234225 DEL3237509 DEL3237516 DEL3237516-S DEL3237516S

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the old hinge by unscrewing it from the door and frame.

Step3: Align the new concealed hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring the extended pin fits properly.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and closing, confirming stability.

Customer Reviews

5 Based on 7 reviews
5 ★
7
4 ★
0
3 ★
0
2 ★
0
1 ★
0
7 reviews
  • Door Swing Stable
    Luke —

    After fixing, the door swing feels stable during daily operation.

  • Smooth Operation
    Nicola —

    Fits perfectly without additional drilling or modifications.

  • Fits Perfectly
    Elldred —

    Easy install, smooth, strong hinge

  • Durable and reliable
    Billy —

    This Concealed Hinge blends both elegance and durability. It hides nicely and gives my appliance a sleek and modern appearance. An excellent purchase for any kitchen renovation!

  • Reliable Hinge Kit
    Hid —

    Great value, heavy duty hinge
