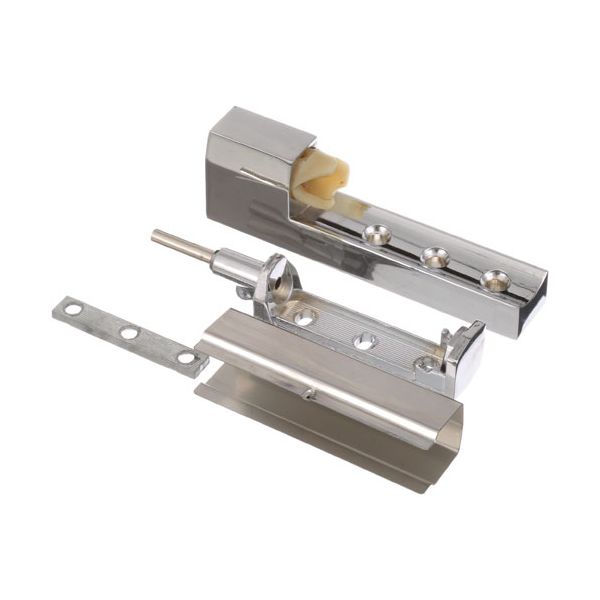

Hussmann 35S014 Edgemount Cam Lift Hinge
CAD$30.86
In stock
SKU
35S014
Manufacturer:
The Hussmann 35S014 Edgemount Cam Lift Hinge is designed to fit commercial systems to allow the movement of the doors and their positioning accurately. Its cam lift design, mounted on the edge of the door, enables it to open and close and puts less pressure on the hinge and other parts. It is placed on the door of the appliance which is secured and properly aligned to assist with the operation. It plays a role in the work of the commercial refrigerators, a vital component of the high-volume food service conditions like restaurants and kitchens.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 1 In
- Weight: 0.92 lbs
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
