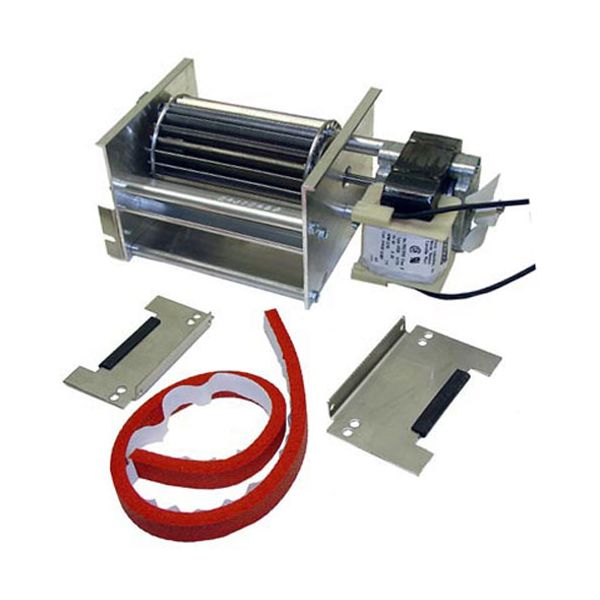

Hatco HT02.12.003B.00 Blower Motor Assembly W/Hardware 8-3/4"
Special Price CAD$557.42 Regular Price CAD$994.00
In stock
SKU
HT02.12.003B.00
Manufacturer:
The Hatco HT02.12.003B.00 Blower Motor Assembly and hardware is 8-3/4 inches and is compatible with the equipment. It drives the internal fan system that spreads the hot air all over the chamber mounting hardware that keeps the hardware in a stable position when it is in operation. The better circulation aids to maintain a uniform thermal balance within the unit and this assembly is installed in the housing compartment and it operates together with heating components to maintain controlled performance. It is significant in the preservation of constant airflow needed in commercial systems.
Dimensions
- Length: 10 In
- Width: 6.3 In
- Height: 6.5 In
- Weight: 4.4 lbs
Product Notes
- Motor / Blower Assembly W/ Hardware For Units Made
- Before June 1998. Hardware Is Conversion Kit To Mount
- This Motor Assembly.
- Dimensions: Overall Width (Incl Motor)- 8-3/4".
- Blower Assy Only - 5-1/4" X 4-1/4" X 3-3/8"
- Blower Wheel - 4" X 2-3/8"
- Same As # 68-1132 But Added Hardware For Conversion
- Of Old Style Units. Used On Units B4 6/98 - Std Wattage
- Cabinets Rated 1725W.
- Units Made From June 1998 To Present Use Motor Assenbly
- # 68-1132.
- Hatco
- Warmer Series: Fs, Fshc, Fst, Wfst.
