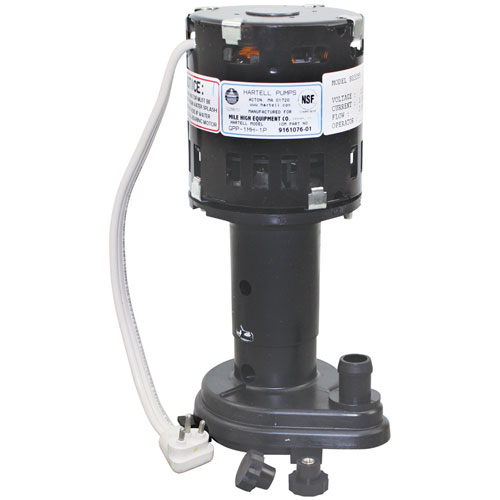

Ice-O-Matic ICE9161076-01 Ice machine Water Pump Assembly 0.38A 120V

SKU: ICE9161076-01 2-ICE9161076-01 Brand:
Ice-O-Matic
Availability:
Out of Stock
(0)
C$879.84
Have a Question? +1 (866) 863-0907

Specifications:

  • Water Pump, 120V, .38A, 2.58 GPM, 1550 RPM
  • Ice-O-Matic C20, C30, C40, C50, C61, Ec200, Ec300, Ec400,
  • Ec500, Ice0250, Ice0250A, Ice0250W, Ice0320, Ice0400,
  • Ice0400A, Ice0400W, Ice0500, Ice0500A, Ice0500R, Ice0500W,
  • Ice0520, Iceu150, Iceu220, Iceu300

Description

The Ice-O-Matic ICE9161076-01 Water Pump Assembly operates as a 0.38A, 120V component which ensures efficient water circulation within ice machines. The device maintains steady water movement to achieve optimal ice production by stopping dry areas and improving ice quality. The pump runs silently while operating efficiently which results in less equipment downtime and lower cost of maintenance. This device features a compact structure that enables quick installation and replacement in restaurants along with hotels and food service operations. The pump plays an essential role in maintaining reliable ice-making operations thus supporting smooth daily functions in demanding facilities.

Dimensions:

  • Weight: 3.52 lbs
  • Length: 14 in
  • Height: 4.5 in
  • Width: 4.5 in

ICE-O-MATIC:

9161076-01

  • What maintenance is required for the Ice-O-Matic ICE9161076-01 Water Pump?

    Periodically inspect the ICE9161076-01 pump for scale or debris buildup and clean the filter screen if present. Also, flush the water circuit during regular machine cleanings (descaling) to prevent reduced flow or pump strain.

  • How do I install the Ice-O-Matic ICE9161076-01 Water Pump?

    • Turn off and unplug the ice machine.
    • Access the pump compartment by removing the panel.
    • Disconnect the old pump’s electrical connector and water tubing.
    • Remove mounting screws or bracket securing the pump.
    • Position the new ICE9161076-01 pump and secure it with the bracket.
    • Reconnect power, run a test cycle, and check for proper water flow.

  • What are common issues with the Ice-O-Matic ICE9161076-01 Water Pump?

    Common problems include reduced flow from scale buildup, noisy operation when the impeller gets clogged, or pump failure if run dry. Faulty float or low water level can also lead to the pump cycling incorrectly.

  • What operating limitations does the Ice-O-Matic ICE9161076-01 Water Pump have?

    The ICE9161076-01 runs on 120 V (or 115 V equivalent) at approximately 0.23–0.38 A and delivers 2.53 GPM flow.
