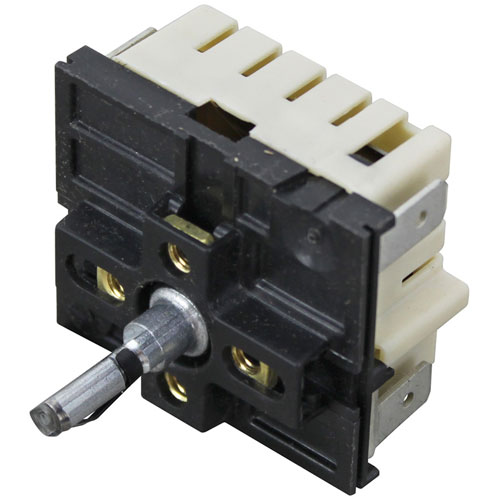

Star Mfg 2E-Z21556 Infinite Switch 15A 120V

SKU: 2E-Z21556 2-2E-Z21556 Brand:
Star Mfg
Availability:
In Stock
(0)
C$49.15 Price reduced from C$56.35
Save C$7.20
Have a Question? +1 (866) 863-0907

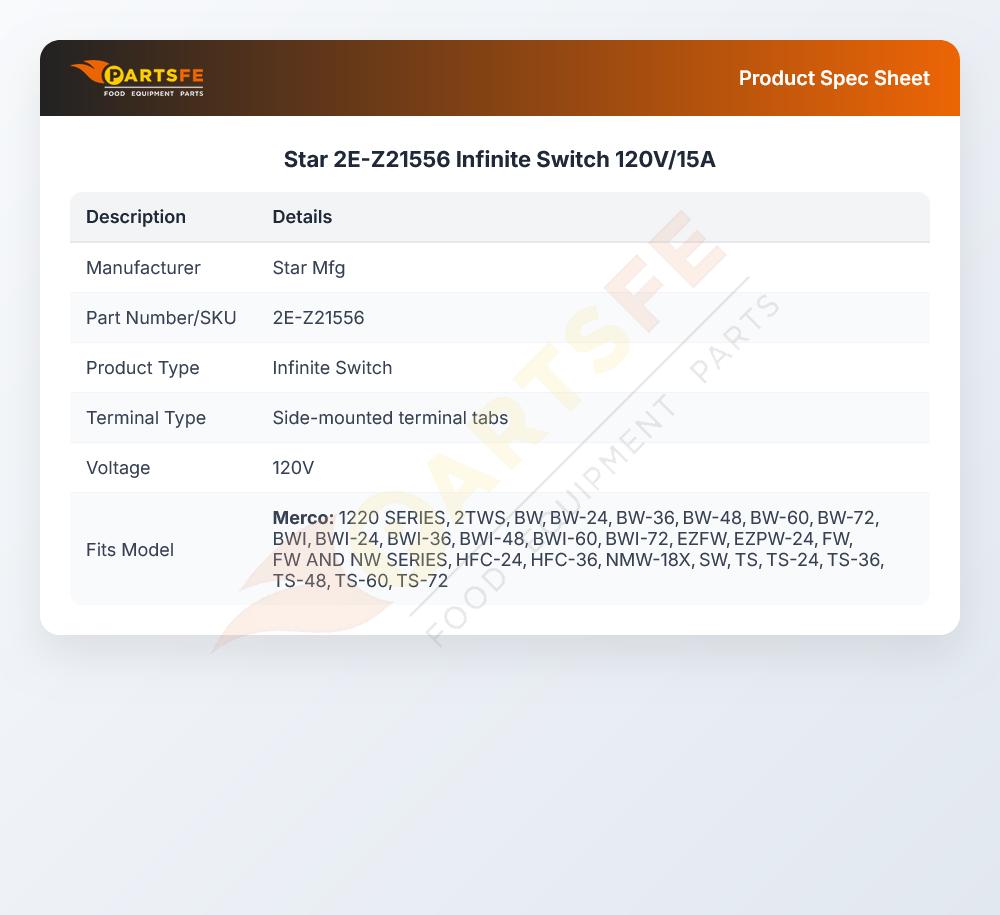

Specifications:

  • 120V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 ) Shaft( 3/16" Od~
  • 3/4" Long~
  • .187" Flat Up ) 4 Screw Mt.
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Bloonfield Model?
  • Delfield
  • Warmer Series: 8300. Taco Bell & Kfc Units.
  • Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
  • Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
  • Hotplate H(65,70,115)

Description

The Star Mfg 2E-Z21556 Infinite Switch is a variable power controller that is used to operate heating circuits on compatible equipment. With 15 amps and 120 volts, it adjusts the intensity of electrical current to control the intensity of heat under a variety of settings. The switch is mounted in the control assembly and allows the smooth adjustment and stable cycling when using. In case of an irregular or unresponsive operation of heat regulation, it is possible to replace the infinite switch, which will allow the correct control operations.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.75 in
  • Width: 1.75 in

BLOOMFIELD:

-2E-30570 2E-30570 6710-109 BLM6710-109

MERCO:

50377 50377SP MER50377 MER50377SP

STAR MFG:

-2E-30520 -2E-30570 -50570 -WS-50570 2E-30520 2E-30570 2E30570 2E34594 30570 50570 WS-50570

STERO:

STA2E-Z21556 WEL2E-30570 WEL2E-Z21556 WEL2E30570

U-LINE:

5502-309 INF120-975

VOLLRATH:

6710-109 VOL6710-109

Step1: Disconnect the appliance from its power source before beginning.

Step2: Remove the control panel to access the existing switch assembly.

Step3: Label and disconnect the wires from the old switch terminals.

Step4: Install the new switch in the same position and secure it firmly.

Step5: Reassemble the panel, restore power, and test heat control responsiveness.
