Genuine OEM Part
main product photo

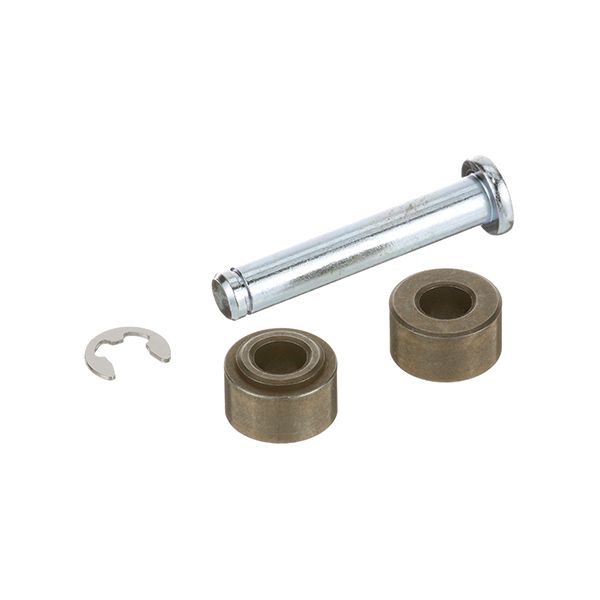

Eliason K0136 Roller Hinge Assembly

2  Reviews Add Your Review
CAD$99.20
In stock
SKU
K0136
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Eliason K0136 Roller Hinge-Assembly is specifically used for double-action swing doors ensuring they operate smoothly and last longer. The assembly consists of premium rollers and a flat head axle alongside an "E" clip which enables smooth door operation in restaurants and improve buildings. This product stands out because of its durable build quality with 3/8" inside roller diameter and 2-1/4" pin length which provides excellent performance in demanding applications. The assembly includes lock nuts together with flathead bolts and expansion bolts and additional bolts to provide users with a complete installation package.

Dimensions

  • Length: 4 In
  • Width: 4 In
  • Height: 0.25 In
  • Weight: 0.17 lbs
https://partsfe.com/media/catalog/product/e/l/eliason-k0136-roller-hinge-assembly-57232.jpg

Product Notes

  • Roller Hinge Assembly Used On Eliason® Double-Action Swing Doors
  • Includes: (2)Rollers,(1)Flat Head Axle,(1)"E"Clip
  • Inside Diameter: 3/8" Rollers, 10 Mm
  • Length: 2-1/4" Pin, 57 Mm Pin
  • (4)Lock Nuts,(4)Flathead Bolts,(2)Expansion Bolts,(2)Bolts
  • Outside Diameter: 3/8" Pin, 7/8" Rollers, 10 Mm Pin, 22 Mm Rollers
  • Weight: 0.17 Lb
  • Width: 1/2" Rollers, 13 Mm Rollers
ELIASON:
Reviews 2
Write Your Own Review
You're reviewing:Eliason K0136 Roller Hinge Assembly
Your Rating
FAQS
Customer Questions
No Questions
Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Ensure the door is stable before starting the installation process.

Step2: Carefully remove the existing hinge assembly from both the door and frame using proper tools.

Step3: Thoroughly clean the mounting surfaces to ensure proper alignment and secure fitting.

Step4: Position the new roller hinge assembly accurately in place.

Step5: Secure it firmly using the original hardware or compatible fasteners.

Step6: Slowly open and close the door to verify smooth operation.

Step7: Make small adjustments if alignment is off.
