Cecilware L032F Thermostat W/Dial 3/16" X 8" 36" CAP 150-400°F BJWA
Special Price CAD$298.76 Regular Price CAD$402.38
In stock
SKU
L032F
Manufacturer:

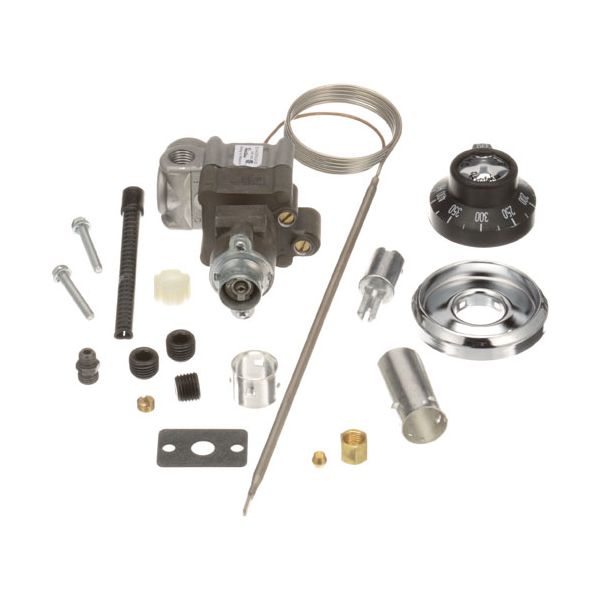

The Cecilware L032F Thermostat with Dial is a mechanical gas component used to regulate cooking temperatures in commercial system. It features a 3/16" by 8" sensing bulb with a 36" capillary tube and an adjustable temperature range of 150°F to 400°F. Installed behind the control panel the sensing bulb monitors cooking surface temperature while the capillary transmits pressure changes to the thermostat body which modulates gas flow to the burner. This interaction maintains the selected temperature and supports consistent heat output during cooking operations.
Dimensions
- Length: 14 In
- Width: 4.5 In
- Height: 3.5 In
- Weight: 1.1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
- [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]
- [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
- Dial = # 22-1036 Off-Lo-150-400-Hi ]
- Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
- Dynamic Cooking Systems Griddle
- Cecilware Grill Before 1/86: Ag-(24,36,48).
- Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
- Jade Series: Jsr
- Montague Griddle
- Southbend Griddle Series Sg
