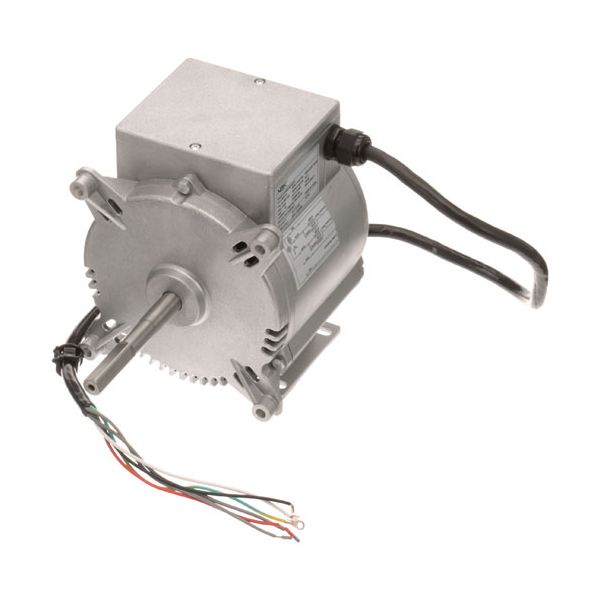

Blodgett 32244 Motor, 2-Speed, 208-240V , 1/3Hp, 1725/1140
CAD$1,998.52
In stock
SKU
32244
The Blodgett 32244 1/3 horsepower 2-speed motor which is suitable for models like the EZ/EFE, FA/GZL, Mark V and Zephaire E comes with a power input of 208-240V, 50/60 Hz, and has a reliable performance at 1725/1140 RPM. It also boasts of a shaft size of 5/8” x 3-1/4”, CW rotation which means the motor faces the shaft and J56Z frame. This is the older model of the motor and while it looks slightly different from the current motor it performs the same duty, Installation instructions are included.
Manufacturer:
Dimensions
- Length: 14 In
- Width: 9 In
- Height: 8 In
- Weight: 4.928 lbs
Product Notes
- **Old Style** [ 200-230V, ][ 50/60 Hz ] [ 1/3Hp ] [1P]
- [2 Speed 1725/1140 RPM] [2.8-2.9/1.3-1.4A] [J56Z Frame]
- [ Rotation Cw (Facing Shaft Of Motor )]
- [ 5/8 X 3-1/4 Shaft ] [ 8-3/4 X 6-3/8 Mtg,Plate ]
- ////Blodgett Changed Motor Style - Different Than Original
- But Functions The Same. Includes Install Instructions////
- **New Style** [ 208-240 ] [ 60 Hz ] [ 1/2 Hp ] [ 1P ]
- [2 Speed 1710/1120 RPM] [2.7/1.8 A] [Rotation Cw (Looking
- From Back Of Motor)] [ 5/8 X 3-1/4 Shaft With Two Flats ]
- Blodgett Blower Wheel 9-3/4 Dia. # 26-1328 Or
- Blodgett Blower Wheel 10" # 26-4052
- Blodgett: Oven Ez/Efe, Fa/Gzl, Mark V, Zephaire E
