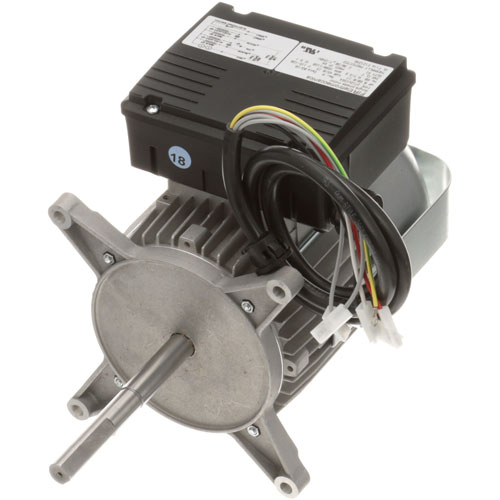

Blodgett 37022 Oven Motor Assembly

SKU: 37022 2-37022 Brand:
Blodgett
Availability:
In Stock
(0)
C$1,344.86 Price reduced from C$2,398.17
Save C$1,053.31
Have a Question? +1 (866) 863-0907

Specifications:

  • { Old Style }Blower Motor, 2 Speed
  • 115V, .75/.21 Hp, 1 Ph, 1725/1140 RPM, 9/4 Amps,
  • Y56Z Frame,
  • 5/8" X 5" Shaft W/2 Flats, 6-1/4" Ctrs On Mtg Holes 34"
  • Armored Cable
  • { New Style } 115/120V, 1 Ph, 2 Speed, RPM 1680/1120
  • 0.60/0.17 Hp, 7/3.6 Amp, 60 Hz
  • Cw Rotation Looking From Back Of Motor Toward The Front
  • Follow Installation Procedures Provided With Motor
  • Blodgett Blower Wheel A4236,Mb-180, # 26-3047
  • Blodgett
  • Oven Shog (Before 11-05-05)~
  • Ac500Xcel
  • Oven Shog After 11-05-05 Use Motor # 68-1058

Description

The Blodgett 37022 Motor Assembly operates essential operations in commercial ovens and steamers, the fans and conveyors. It has two speed settings for the airflow regulation and that energy consumption is kept to a minimum. The features are voltage of 115/120V, speed of 1680/1120 RPM and power of 0.60/0.17 HP. It is designed to fit in different Blodgett oven models to guarantee durability and effectiveness in the commercial kitchen. The 37022 Motor Assembly is designed for ease of installation and minimal maintenance.

Dimensions:

  • Weight: 30.5 lbs
  • Length: 19 in
  • Height: 10 in
  • Width: 10 in

Step1: Turn off the power to the oven.

Step2: Remove the access panel to disply the existing motor assembly.

Step3: Disconnect the wiring and remove the old motor.

Step4: Install the new motor assembly in the same position and secure it firmly.

Step5: Replace the panel, restore power, and test for proper operation.

  • What maintenance is required for the Blodgett 37022 Motor Assembly?

    Clean the motor housing and conduit frequently to remove grease and dust. Check the two-speed function and listen for bearing noise-replace the motor if vibration or current draw increases abnormally.

  • How do I install the Blodgett 37022 Motor Assembly?

    • Disconnect power from the oven and let it cool.
    • Remove the access panel to expose the old blower motor assembly.
    • Unscrew and remove the old motor and conduit.
    • Install the new 37022 motor in the same orientation, using the existing mounting holes 6‑1/4″ centers.
    • Reconnect the conduit wiring exactly as before.
    • Replace the panel, restore power, and run the oven while listening to confirm both high and low-speed fan operation.

  • What are common issues with the Blodgett 37022 Motor Assembly?

    Common issues include worn bearings causing noise, failure of one speed winding, and aged conduit insulation that can crack or short.

  • Which models are compatible with the Blodgett 37022 Motor Assembly?

    It is compatible with the Convection Oven, including models SHO-G, SHO-100-G and DFG-100 XCEL.
