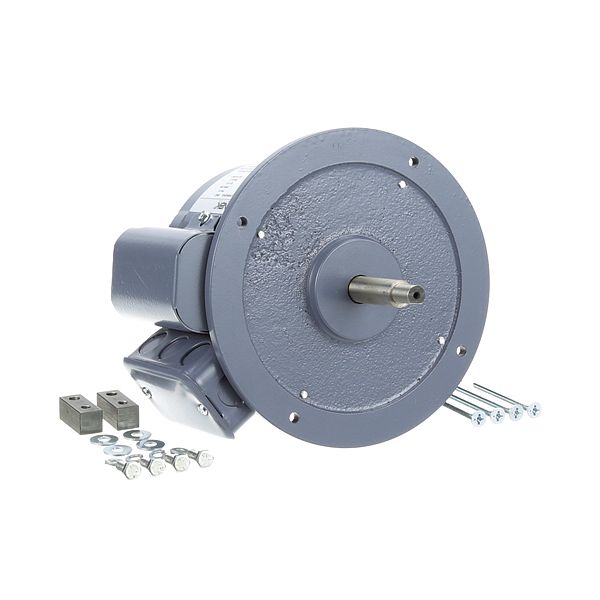

Jade Range 8400119000 Oven Motor

Be the first to review this product

Special Price CAD$1,786.26 Regular Price CAD$3,043.70

Out of stock

SKU

8400119000

Categories: Electrical & Hardware, Motors & Pumps,

Manufacturer:

Jade Range

The Jade Range 8400119000 Motor is single phase, 115volt,1/4 horsepower basically used in commercial oven. This motor runs at 1725 RPM with a 56YZ frame and has a 3-1/8” long shaft with a turned-down 1/2” flat side. The motor is provided with mounting holes and hardware for easy fitting and installation Four 1/4-20 x 3 FH MS screws, flat washers and lock washers. It is suitable for Jade oven models such as JSR-22C, JSLB, and JTRH to improve performance and durability, and is suitable for commercial use, for heavy and constant use.

Dimensions

Length: 12.5 In
Width: 12 In
Height: 14.5 In
Weight: 19.1 lbs

Product Notes

115V, 1725 RPM, 1/4Hp, 56Yz Frame, 3-1/8" Long Shaft,
"Turned Down 1/2" 1 Flat Side, 3/4" Long", 4Ea Mt Holes
5-1/16" Ctrs, 4 Blocks 1-1/2" Long X 5/8", 1/4" Hole &
1/4-20 Thd Hole, 4Ea 1/4-20 X 3" Fh Fhil Ms, 4Ea 5/16" Flat
Washers, 4Ea 1/4" Lock Washers
Motor Only = Ap# 8010454
Jade 7-1/2" Blower Wheel For Model Jsr-22C,Jtrh #26-4016
Jade 8" Blower Wheel For Model Jslb,Jsr(Except 22C)
# 26-2344
Jade
Oven Jslb,Jsr,Jtrh

Replaces Parts

JADE RANGE:

840011900, 8400119000

Reviews

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Jade Range 8400119000 Motor?

Regularly clean the motor housing and fan wheel for grease and debris build-up; inspect the shaft and bearings for wear and replace the motor if you observe vibration, elevated temperature, or declined airflow.

How do I install the Jade Range 8400119000 Motor?

Turn off power to the oven and wait for it to cool.
Remove the access panel and disconnect wiring from the existing blower motor.
Unscrew the mounting bolts and remove the old motor assembly.
Mount the new 115V, 1/4 HP motor in the identical orientation and secure all hardware.
Reconnect wiring accurately as before, ensuring proper grounding and correct phase.
Restore power and run the oven to confirm the blower operates at ~1725 RPM and clears air evenly across the cavity.

What are common issues with the Jade Range 8400119000 Motor?

Common issues include bearing failure which produces rattling or squealing, motor under-speed caused by incorrect voltage, and shaft wear or fan misalignment leading to inefficient airflow.

Which Jade Range models are compatible with the 8400119000 Motor?

This part fits the charbroiler range models JTRH-2FHT, JTRH-36B, and JTRH-36B-36C.
