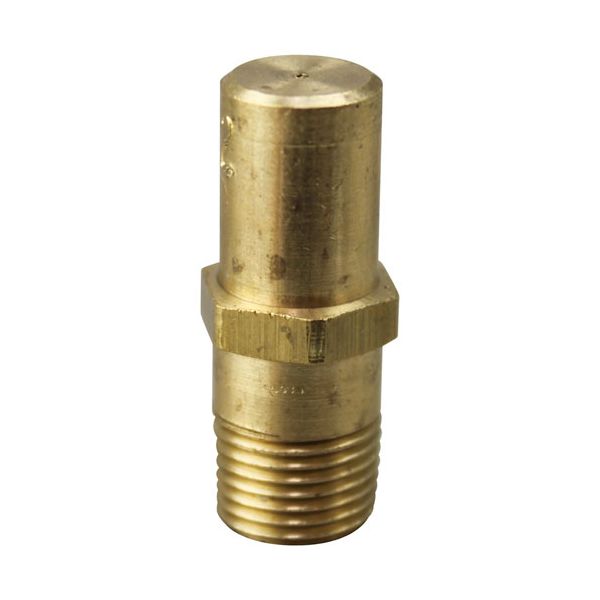

Garland 1265556 Convection Oven Orifice Fitting
CAD$31.79
In stock
SKU
1265556
Manufacturer:
The Garland 1265556 Convection Oven Orifice Fitting is a gas flow element that is installed in a commercial system to control the supply to the burner assembly. It is placed between the supply line of gases and the nozzle of the burner and contains the orifice that regulates the exact flow of gases. This is fitted in the combustion system of the oven, and it in proper air-to-gas ratio and even heat production during cooking processes. It is applied in restaurants and kitchens in applications and is changed during service or maintenance to correct the associated flame features or performance.
Dimensions
- Length: 1.25 In
- Width: 0.5 In
- Height: 1.25 In
- Weight: 0.1 lbs
Product Notes
- Brass Burner Orificr, 1/8" Mpt X #72, 1-1/8" Long
- This Is A #72 And Must Be Drilled To The Size Needed.
- Garland Lp Orifice,
- For Lp Drill To #56. Use Drill # 72-1064
- For Nat Drill To #48. Use Drill # 72-1056
- 1/8"Mpt X 1-1/8" Long
- Garland Tg3, Tg4, Fco, Ico
- Note: Some Ovens Require #48 Or #52 For Nat
