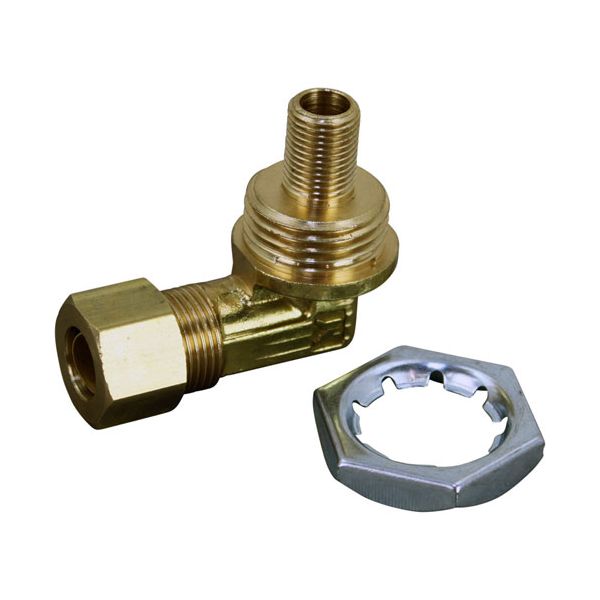

Jade Range 1815700000 Range Orifice Elbow 90° 3/8" CCT X 3/8"-27 Thread
CAD$85.37
In stock
SKU
1815700000
Manufacturer:
The Jade Range 1815700000 Range Orifice Elbow is a gas flow fitting that is compatible with the system. It has a 90 degree elbow with 3/8 inch CCT and 3/8-27 threaded connections that direct the flow of the gas to the burner assembly at the correct angle. It is installed in the gas delivery line and helps to align it correctly and to distribute the fuel. This component is usually changed in case of thread damage or gas flow alignment. The orifice elbow ensures that the burner is stable in operation and the range system is always performing by ensuring the correct routing of gases.
Dimensions
- Length: 3.25 In
- Width: 2.5 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Orifice Holder, 3/8" Cct X 3/8"-27 Thread
- For Lp Brass Hood Orifice Use
- 3/8"-27 X 1/2" High X #72, (Lp)# 26-1080
- Can Be Drilled Out For Other Size.
- Suggest #56 # 26-1780 Or #53 # 26-1113 For Natural Gas.
- Comstock Castle
- Imperial Broiler Icma-24, Icma-36, Icma-48, Icma-60,
- Icma-72, Isb-24
- Us Range Broiler, Oven 836 Cuisine
- Fryer Rcf- 2424, 2448
- Us Range Grill Tb-24Gg, Rgta
